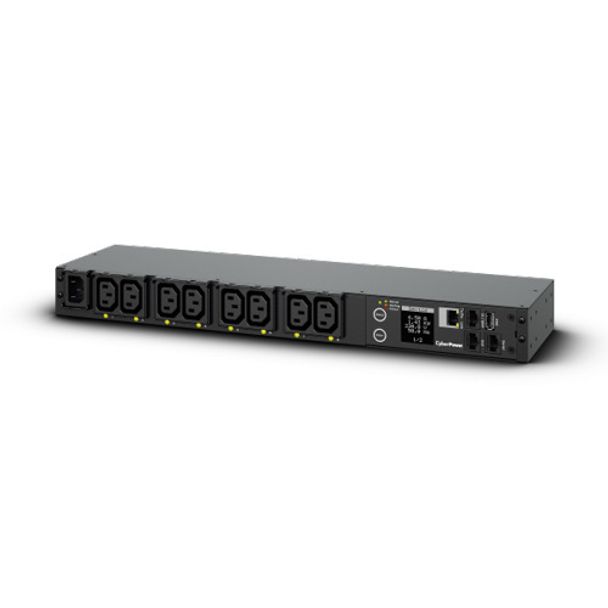

CyberPower PDU81004 Epdu 1Ru Horizontal 12Amp
| Location | Availability |
|---|---|
Online (Delivery) | ETA (07/09/2026) |
Notting Hill (Pickup) | ETA (07/09/2026) |
Preston (Pickup) | ETA (07/09/2026) |
West Melbourne (Pickup) | ETA (07/09/2026) |
CyberPower PDU81004 is Ideal for data center and enterprise applications, the Switched Metered-by-Outlet PDU Series is a network-grade power distribution unit, providing real-time local/remote monitoring and on/off control of individual outlet for remote reboots, scheduled on/off and more. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address. The digital LCD display is hot-swappable, color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD’s colors to easily categorize devices. The product is compatible with PowerPanel® Power Management Software and CyberPower ENVIROSENSOR for real-time monitoring and configuration. Other features include Cisco EnergyWise™, IEC receptacle locking and user-upgradeable firmware.
FEATURES
- Real-Time Local/Remote Monitoring and Switching of Individual Outlet
- Controllable Receptacles with Power Sequencing
- Work under High Temperature
- ±1% Measurement Accuracy
- Industrial-grade Metal Housing
- Digital Real-time Load Display
- User Configurable Color LCD
- Hot-swappable LCD Design
- Rotatable LCD for Proper Display Orientation
- LED Status Indicator
- Firmware Upgrade via USB
- Support ENVIROSENSOR
- User-upgradeable Firmware
- PowerPanel® Management Software
- Adjustable Mounting Brackets
- Cord Retention Tray
- IEC Receptacle Locking
TYPICAL APPLICATION
- Office
- Back Office
- Server Room
- Data Center
- Factory
- Security Systems
- Surveillance Systems
- Telecom Devices
- Networking Devices
- NAS/Storage Devices
- Satellite Devices
- Multimedia Devices
- Workstations
| Input Voltage (Volts) , Input Frequency (Hz) , Current Level (Amps) , Power Consumption (Kilowatts) , Network Information , Serial Number , Environment Status , Hardware Version , Firmware Version |
| Yes |
| Yes |
| Yes |
| Outlet Control , LCD Settings , Reset / Reboot |
| PDU Status , Tx/Rx , Link , Outlet |
| ± 1% |
| Yes |
| RJ45 , RJ45 (for Serial) , RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) , RJ45 (for Daisy Chain (Out)) |
| Yes |
| Yes |
| PowerPanel® Business , PowerPanel® Enterprise |
| IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog |
| RADIUS, LDAP, LDAPS, Windows AD |
PHYSICAL
| 1 |
| 1U Vertical Rackmount , 1U Horizontal Rackmount |
| Steel |
| Black |
| Yes |
| Yes |
| Yes |
| 2 Set (L-short, L-long) |
PHYSICAL SIZE
| 17.05 x 1.75 x 4.41 |
| 433 x 44 x 112 |
| 4.6 |
| 2.1 |
SHIPPING DIMENSIONS
| 19.68 x 2.56 x 9.84 |
| 500 x 65 x 250 |
| 8.6 |
| 3.9 |
ENVIRONMENTAL
| Yes |
| 32 ~ 131 |
| 0 ~ 55 |
| 0 ~ 95 |
| 0-11,480 feet (0-3,500 meters) |
| 5 ~ 140 |
| -15 ~ 60 |
| 0 ~ 95 |
| 0-50,000 feet (0-15,000 meters) |
CERTIFICATIONS
| CE , FCC Class A , UL60950 , EN 55032 Class A |
| Yes |
| Yes |
WARRANTY
| 2 |
| GTIN | 4712856278439 |
|---|
