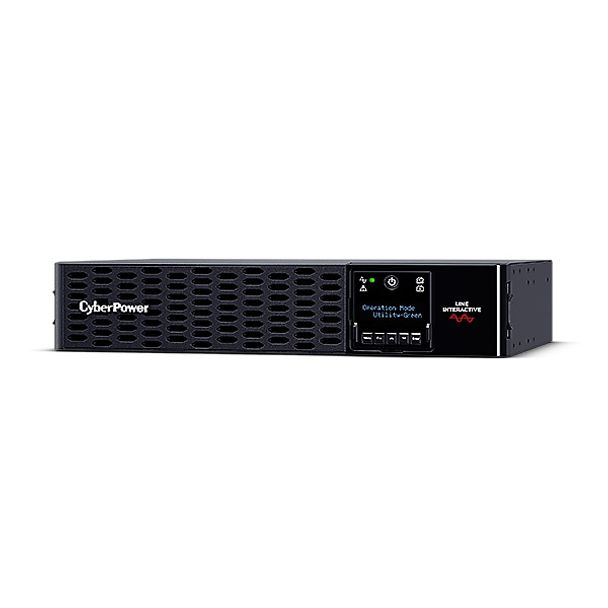

CyberPower PR1000ERTXL2UC Systems PRO Rack/Tower LCD 1000VA/1000W 2U Line Interactive UPS
Model
PR1000ERTXL2UC
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
$867.70
CyberPower PR1000ERTXL2UC with rackmount design guarantees power backup protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality. The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. The quick charging technology allows fast and safe battery charging. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.
Features
- Line-interactive UPS Topology
- Active PFC Compatible
- Toolless Battery Replacement
- High Output Power Factor
- Overload Protection
- Quick Charging Technology
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- USB Connectivity Port
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
- Energy Saving Technology
- Pure Sine Wave Output
- Battery Management Technology
- Automatic Voltage Regulation (AVR)
- Critical/Non-critical Load Outlets
- Hot-swappable Batteries
- Surge and Spike Protection
- LCD Status Display
- Serial Connectivity Port
- PowerPanel Management Software
- Built-in Remote Cloud Card by Ethernet
General
Phase
| Single Phase |
Form Factor
| Rackmount, Tower |
UPS Topology
| Line-interactive |
Energy Saving Technology
| GreenPower UPS™ Bypass Technology |
Active PFC Compatibility
| Yes |
Input
Nominal Input Voltage ( Vac )
| 200 |
| 208 |
| 220 |
| 230 |
| 240 |
Input Voltage Range (At specific volt)
| For 220/230/240V systems: 159 ~ 288 Vac |
| For 200/208V systems: 148 ~ 254 Vac |
Adjustable Voltage Range ( Vac )
| For 220/230/240V systems: 151 ~ 302 Vac |
| For 200/208V systems: 131 ~ 268 Vac |
Input Frequency ( Hz )
| 50 ± 3 |
| 60 ± 3 |
Input Frequency Detection
| Auto-sensing |
Rated Input Current ( A )
| 10 |
Input Connector Type
| IEC C14 | |
Detachable Power Cord Plug Type
| IEC C14 x 1 | |
Power Cord Length (ft.)
| 6 |
Power Cord Length (m.)
| 1.8 |
Output
Capacity (VA)
| 1000 |
Capacity (Watts)
| 1000 |
On Battery Waveform
| Pure Sine Wave |
On Battery Voltage(s) ( Vac )
| 200 ± 5 % |
| 208 ± 5 % |
| 220 ± 5 % |
| 230 ± 5 % |
| 240 ± 5 % |
On Battery Frequency ( Hz )
| 50 ± 1% |
| 60 ± 1% |
Power Factor
| 1 |
Automatic Voltage Regulation (AVR)
| Double Boost, Single Buck |
Overload Protection
| Internal Current Limiting, Circuit Breaker |
Outlet(s) - Total
| 10 |
Outlet Type
| IEC C13 x 10 |
Outlet(s) - Battery & Surge Protected
| 10 |
Outlet(s) - Critical Load (CL)
| 5 |
Outlet(s) - Non-critical Load (NCL)
| 5 |
Typical Transfer Time ( ms )
| 6 (At normal sensitivity) |
Battery
Runtime at Half Load ( min )
| 21.3 |
Runtime at Full Load ( min )
| 7.9 |
Typical Recharge Time ( Hours )
| 3 (Recover to 90% after full load discharge) |
Start On Battery
| Yes |
Built-in Battery Management Module
| Yes |
User-replaceable
| Yes |
Hot-swappable
| Yes |
Replacement Battery Pack (RBP)
| RBP0128 |
Replacement Battery Pack (RBP) Quantity ( pcs )
| 1 |
Battery Quantity (Each RBP) ( pcs )
| 4 |
Compatible Extended Battery Module (EBM)
| BP48VP2U01 (Built-in Charger) |
Max. EBM Quantity ( pcs )
| 10 |
Surge Protection & Filtering
Surge Suppression ( Joules )
| 2430 |
EMI/RFI Filtration
| Yes |
Management & Communications
LCD Panel
| Yes |
LCD Orientation
| Rotatable LCD – Manual |
LCD Information Display
| Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log |
LCD Setting & Control
| Mode Setting, Alarm Setting, Input & Output, Battery Setting, Communication, Language |
LED Indicators
| Power On, Line Mode, Battery Mode, UPS Fault, Battery Fault |
HID Compliant USB Port(s)
| 1 |
Serial Port
| RS232 |
Dry Contact (with Relay)
| Yes |
Emergency Power Off (EPO) Port
| Yes |
Audible Alarms
| Battery Mode, Low Battery, Overload, Overcharge |
Management Cable ( pcs )
| Power Cord x2, USB Cable x1, EPO Cable x1 |
Power Management Software
| PowerPanel Business (Recommended) |
SNMP/HTTP Remote Monitoring
| Yes - with optional RMCARD205 |
Remote Cloud Card
| Yes - Built-in Remote Cloud Card by Ethernet |
PowerPanel Cloud Service
| Yes - 30 Days (UPS) Free Trial + 3 Years (Remote Cloud Card) Free Service |
Physical
Enclosure Construction
| Metal |
Color
| Black |
Rackmount Rail
| Yes |
Rackmount Ears
| Yes |
Physical Size - UPS Module
Dimensions (WxHxD) (in.)
| 17.1 x 3.4 x 16.2 |
Dimensions (WxHxD) (mm.)
| 433 x 86.5 x 412 |
Weight (lbs.)
| 52 |
Weight (kg.)
| 23.6 |
Installed Rack Height ( U )
| 2 |
Shipping Dimensions
Dimensions (WxHxD) (in.)
| 22.1 x 10.8 x 20.9 |
Dimensions (WxHxD) (mm.)
| 560 x 275 x 530 |
Weight (lbs.)
| 66.6 |
Weight (kg.)
| 30.2 |
Environmental
Operating Temperature (°F)
| 32 ~ 104 |
Operating Temperature (°C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % )
| 0 ~ 95 |
Operating Elevation ( feet/meters )
| 0-9,843 feet (0-3,000 meters) |
Storage Temperature (°F)
| 5 ~ 113 |
Storage Temperature (°C)
| -15 ~ 45 |
Storage Relative Humidity (Non-condensing) ( % )
| 0 ~ 95 |
Storage Elevation ( feet/meters )
| 0-49,213 feet (0-15,000 meters) |
Online Thermal Dissipation ( BTU/hr )
| 49.5 |
Audible Noise at 1.0M from Surface of Unit ( dBA )
| 52.5 (Virtually silent during normal operation) |
Audible Noise at 1.0M from Surface of Unit
| 38.5~52.5 |
Certifications
Certifications
| CE, FCC Class B, UL, cUL, VCCI |
RoHS
| Yes |
| GTIN | 4711027798974 |
|---|
