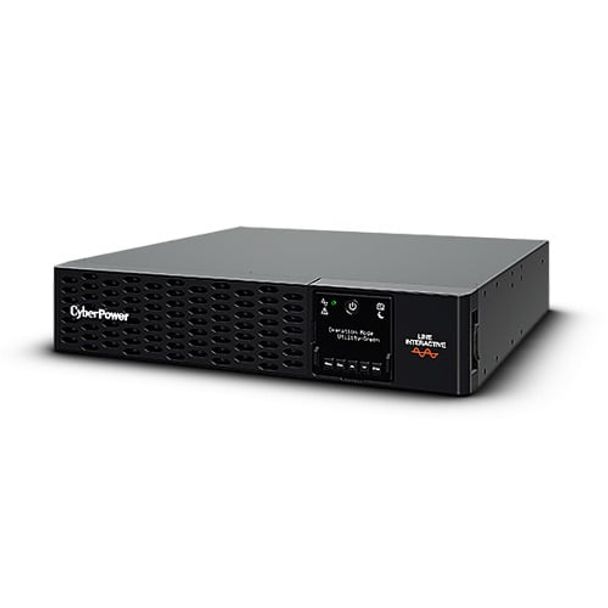

CyberPower PR3000ERTXL2U PRO Rack/Tower LCD 3000VA / 3000W (15A) 2U Line Interactive UPS
Model
PR3000ERTXL2U
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 3 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 3 Working Days) |
$2,149.00
CyberPower PR3000ERTXL2U PRO Rack/Tower LCD 3000VA / 3000W (15A) 2U Line Interactive UPS
CyberPower PR3000ERTXL2U with rackmount design guarantees power backup protection for home theatre systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality. The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.
FEATURES
- Line-interactive UPS Topology
- Energy Saving Technology
- Active PFC Compatible
- Pure Sine Wave Output
- Night Mode Design
- Tool-less Battery Replacement
- Battery Management Technology
- High Output Power Factor
- Automatic Voltage Regulation (AVR)
- Overload Protection
- Critical/Non-critical Load Outlets
- Hot-swappable Batteries
- Extended Battery Module (EBM)
- Surge and Spike Protection
- EMI and RFI Filtration
- LCD Status Display
- USB Connectivity Port
- Serial Connectivity Port
- Emergency Power Off (EPO) Port
- PowerPanel® Management Software
- SNMP/HTTP Remote Management Capability (Optional)
- Rack/Tower Convertible Configurations
TYPICAL APPLICATION
- SOHO Office
- Office
- Back Office
- Server Room
- Data Center
- Supermarket
- Factory
- Airport
- Train Station
- Home Theatre Systems
- Surveillance Systems
- Telecom Devices
- Networking Devices
- NAS/Storage Devices
- Multimedia Devices
- Computers
- Workstations
GENERAL
Phase
| Single Phase |
UPS Topology
| Line-interactive |
Energy Saving Technology
| GreenPower UPS™ Bypass Technology |
Energy Star Qualified
| Yes |
Active PFC Compatibility
| Yes |
INPUT
Generator Compatibility
| Yes |
Nominal Input Voltage ( Vac )
| 220 |
| 230 |
| 240 |
Input Voltage Range ( Vac )
| 159 ~ 288 |
Adjustable Voltage Range ( Vac )
| 151 ~ 302 Vac |
Input Frequency ( Hz )
| 50 ± 3 |
| 60 ± 3 |
Input Frequency Detection
| Auto-sensing |
Input Connector Type
| IEC C20 |  |
Detachable Power Cord Plug Type
| AU |  |
| IEC C20 | |
Power Cord Length (ft.)
| 8 |
Power Cord Length (m.)
| 2.4 |
OUTPUT
Capacity (VA)
| 3000 |
Capacity (Watts)
| 3000 |
On Battery Waveform
| Pure Sine Wave |
On Battery Voltage(s) ( Vac )
| 220 ± 5% |
| 230 ± 5% |
| 240 ± 5% |
On Battery Frequency ( Hz )
| 50 ± 1% |
| 60 ± 1% |
Power Factor
| 1 |
Automatic Voltage Regulation (AVR)
| Double Boost, Single Buck |
Overload Protection
| Internal Current Limiting , Circuit Breaker |
Outlet(s) - Total
| 8 |
Outlet Type
| IEC C13 x 6 |  |
| IEC C19 x 2 |  |
Outlet(s) - Battery & Surge Protected
| 8 |
Outlet(s) - Critical Load (CL)
| 4 |
Outlet(s) - Non-Critical Load (NCL)
| 4 |
Typical Transfer Time ( ms )
| 4 |
BATTERY
Runtime at Half Load ( min )
| 7.1 |
Runtime at Full Load ( min )
| 1.7 |
Typical Recharge Time ( Hours )
| 3 |
Start On Battery
| Yes |
Built-in Battery Management Module
| Yes |
User-replaceable
| Yes |
Hot-swappable
| Yes |
Battery Type
| Sealed Lead-acid |
Replacement Battery Pack
| RBP0129 |
RBP Quantity ( pcs )
| 1 |
Extended Battery Module (EBM)
| BP48VP2U02 (Built-in Charger) |
Max. EBM Quantity ( pcs )
| Unlimited |
SURGE PROTECTION & FILTERING
Surge Suppression ( Joules )
| 2430 |
EMI/RFI Filtration
| Yes |
Network Protection RJ45
| 1-in, 1-out |
MANAGEMENT & COMMUNICATIONS
LCD Panel
| Yes |
LCD Orientation
| Rotatable LCD panel |
LCD Information Display
| Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Other Information , Event & Log |
LCD Setting & Control
| Mode Setting , Alarm Setting , Input & Output , Battery Setting , Communication , Language |
LED Indicators
| Power On , Line Mode , Battery Mode , UPS Fault , Night Mode |
HID Compliant USB Port(s)
| 1 |
Serial Port
| RS232 |
Dry Contact (with Relay)
| Yes |
Emergency Power Off (EPO) Port
| Yes |
Audible Alarms
| Battery Mode , Low Battery , Overload , Overcharge , Overheat |
Management Cable ( pcs )
| USB Cable x1 , Serial Cable x1 , EPO Cable x1 |
Power Management Software
| PowerPanel® Business |
SNMP/HTTP Remote Monitoring
| Yes - with optional RMCARD205 |
PHYSICAL
Form Factor
| Rack/Tower |
Enclosure Construction
| Metal |
Color
| Black |
Rackmount Rail
| Yes |
Rackmount Ears
| Yes |
PHYSICAL SIZE - UPS MODULE
Dimensions (WxHxD) (in.)
| 17.1 x 3.4 x 19.7 |
Dimensions (WxHxD) (mm.)
| 433 x 86.5 x 500 |
Weight (lbs.)
| 72.3 |
Weight (kg.)
| 32.8 |
Installed Rack Height ( U )
| 2 |
SHIPPING DIMENSIONS
Dimensions (WxHxD) (in.)
| 22.1 x 10.8 x 24.4 |
Dimensions (WxHxD) (mm.)
| 560 x 275 x 620 |
Weight (lbs.)
| 90 |
Weight (kg.)
| 40.8 |
ENVIRONMENTAL
Operating Temperature (°F)
| 32 ~ 104 |
Operating Temperature (°C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % )
| 0 ~ 95 |
Operating Elevation ( feet/meters )
| 0-10,000 feet (0-3,000 meters) |
Storage Temperature (°F)
| 5 ~ 113 |
Storage Temperature (°C)
| -15 ~ 45 |
Storage Relative Humidity (Non-condensing) ( % )
| 0 ~ 95 |
Storage Elevation ( feet/meters )
| 0-50,000 feet (0-15,000 meters) |
CERTIFICATIONS
Certifications
| CE , FCC Class A , UL , RCM , VCCI |
RoHS
| Yes |
| GTIN | 4712856277302 |
|---|
