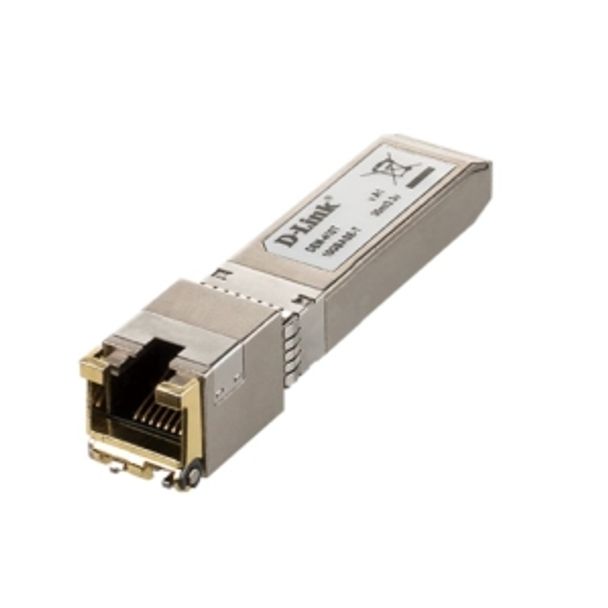

D-Link DEM-410T 10GBASE-T RJ45 Copper SFP+ Transceiver (Cat6A 30m)

Overview

The 10GBASE-T SFP+ transceiver module delivers the flexibility and port density well known to the SFP+ form-factor, utilising Cat 6a UTP structured cabling for network connectivity.

The 10GBASE-T SFP+ transceiver module delivers the flexibility and port density well known to the SFP+ form-factor, utilising Cat 6a UTP structured cabling for network connectivity. It is a power-optimised solution for lengths up to 30m, engineered to deliver a minimum power saving of at least 0.5W per port compared to an equivalent embedded 10GBASE-T RJ45 for the same length (Cat 6a, up to 30m). These power savings can add-up in ToR, mid-row and end-of-row switch connectivity.

Its the alternative compared with standard SFP+ SR/LR fibre optics, which uses standard-based technology with the familiar RJ45 connector and provides backward compatibility with legacy networks.

Specifications

Features

• Hot Pluggable
• MSA Compliant: SFF-8431, SFF-8432
• RoHS Compliant

Specification

Compliant Standard

• IEEE 802.3an 10GBase-T IEEE
• 802.3ab 1000BASE-T

Transceiver Type

• RJ45

Max. Transmit Distance

• 10GBASE-T up to 30m with Cat 6a
• 1000BASE-T up to 100m with Cat 5e

Speed

• 10Gbps

Operating Power (V)

• 3.3V

Max Input Current (mA)

• 780mA

MTBF (hours)

• 217,186 hours

Operation Temperature (C)

• 0~65

Storage Temperature (C)

• -40~85

Operating Humidity (%)

• 5%~95%

Storage Humidity (%)

• 5%~95%

Dimension ( W x D x H mm)

• 13.7mm x 68mm x 8.5mm

Weight (g)

• 20g

Emission (EMI)

• FCC Class B, CE Class B VCCI, Class B

Safety

• LVD
