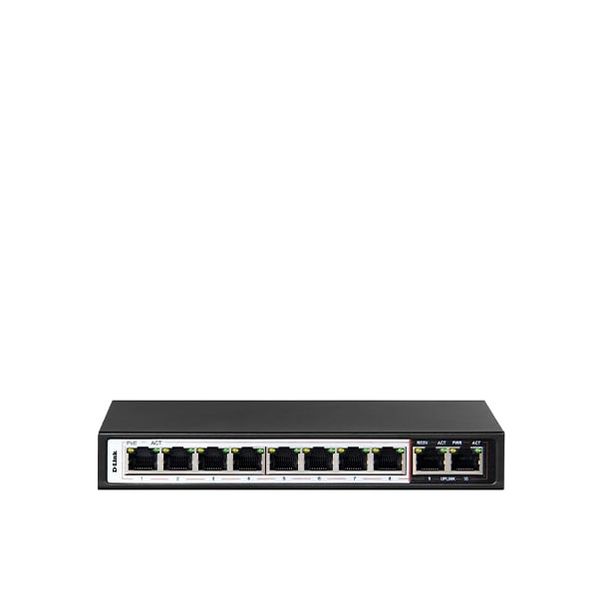

D-Link DES-F1010P-E 10-Port 10/100Mbps PoE Switch

Name: D-Link DES-F1010P-E 10-Port 10/100Mbps PoE Switch
Brand: D-Link
SKU: SWI-DLI-F1010PE
Price: 109 AUD
Availability: InStock

Model

DES-F1010P-E

Be the first to review this product

Location	Availability
Online (Delivery)	Available from Supplier (2 to 3 Working Days)
Notting Hill (Pickup)	Available from Supplier (2 to 3 Working Days)
Preston (Pickup)	Available from Supplier (2 to 3 Working Days)
West Melbourne (Pickup)	Available from Supplier (2 to 3 Working Days)

$109.00

10-Port 10/100Mbps PoE Switch with 8 Long Reach PoE Ports and 2 Uplink Ports. PoE budget 96W.

Details

250M 10-Port Fast Ethernet Switch with 8 PoE Ports and 2 Uplink Ports

• 8 10/100 Mbps PoE ports
• 2 10/100Mbps Uplink ports
• 96 W PoE budget
• Support IEEE802.3af/at up to 30W per port to PoE compatible devices
• Support transmission Data/PoE up to 250m cable length
• 6KV Lightning protection
• Smart Features: Extend, VLAN, QoS and PoE
• Plug & Play Installation

Built for your Need

Robust and cost-effective PoE solution to provide power for your PoE powered devices such as IP cameras, CCTV, VoIP, AP etc

Up to 250m PoE and Data Transmission

Equipped with PoE extend technology, DES-F1010P-E have the capability to supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long distance solution

6KV Surge Protection

D-Link 250M is enhanced with 6KV surge protection Effectively guard equipment from lighting damage especially if use on AP/IP camera install outdoor or at higher position

Enhanced with VLAN Function

With a flick of button, Isolate the downlink port to each other can effectively suppress network storms and improve network performance

Enhanced with Video QoS

Improve the Video Packet Priority
Create high priority for video streaming, perfect solution for IP camera/CCTV

Intelligent Detection

Automatically Detect unresponsive PoE device and reboot the device for recovery

Robust deployment for all occasion

Specifications

Size		• Desktop
Interfaces		• 8 10/100 BASE-T ports • 2 10/100 BASE-T Uplink ports
Standards		• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) • ANSI/IEEE 802.3 NWay auto-negotiation • IEEE 802.3x ow control
Media Interface Exchange		• Auto MDI/MDI-X adjustment on all ports
Lighting Protection		• 6KV
Switching Fabric		• 2 Gbps
Transmission Method		• Adopt Store-and-forward
Data Transfer Rates		• Fast Ethernet • 100 Mbps • Ethernet • 10 Mbps
Packet Filtering / Forwarding Rates		• 10M port maximum 14800pps • 100M port maximum 148800pps
PoE Standards		• IEEE 802.3af • IEEE 802.3at
PoE-Capable Ports		• Ports 1 to 8
Power Budget		• 96 W (36 W max. per PoE port)
LED Power		• Yes
LED Link/Activity		• Yes
Weight		• 0.95kg
Dimensions		• 184 x 75 x 27 mm
Power		• External power adapter: 60W
Temperature		• Operating: 0 to 40 ˚C (32 to 104 ˚F)
Humidity		• Operating: 0% to 95% RH non-condensing • Storage: 0% to 95% RH non-condensing
