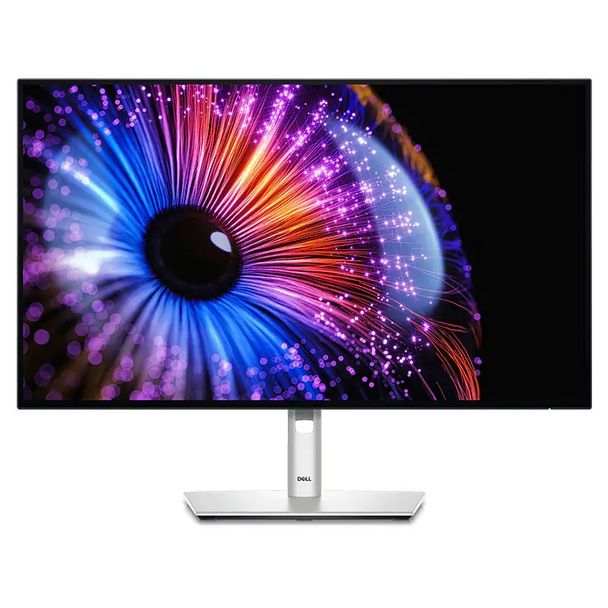

Dell U2724DE UltraSharp 27" QHD 120Hz IPS Thunderbolt Hub Monitor

Diagonal Viewing Size

684.70 mm

27.00 inches

Preset Display Area (H x V)

596.74 mm x 335.66 mm

23.49" x 13.22"

200,301.74 mm2 (310.47 inches2)

Panel Type

IPS Black Technology

Display Screen Coating

Anti-Glare with 3H hardness

Maximum Preset Resolution

2560 x 1440 at 120 Hz

Viewing Angle

178°vertical / 178°°horizontal

Pixel Pitch

0.2331 mm x 0.2331 mm

Pixel Per Inch (PPI)

108.97

Contrast Ratio

2000 to 1 (typical)

Aspect Ratio

16:9

Backlight Technology

LED Edgelight System

Brightness

350 cd/m2 (typical)

Response Time

8 ms (Normal)

5 ms (Fast)

HDR Ready

No

Ambient Light Sensor

Yes, auto brightness and colour temperature adjustment

Colour support

1.07 billion colours

Colour Gamut

100% sRGB, 100% BT.709, 98% Display P3, 98% DCI-P3, Delta E < 2   (average) (sRGB, BT.709, Display P3, DCI-P3)

Interfaces

1 x DisplayPort 1.4 (DRR for Microsoft Windows) (Supports 2 x QHD 120Hz 8 bit)

1 x DisplayPort 1.4 (Out)

1 x HDMI (HDCP 1.4)(Supports up to QHD 2560 x 1440 120Hz TMDS, VRR as   per specified in HDMI 2.1)

1 x ThunderboltTM 4 downstream port (15W) for daisy chaining

1 x ThunderboltTM 4 upstream port (Video + Data). Alternate mode with DisplayPort 1.4, power delivery up to 90W.

1 x USB-Type C upstream port (data only) (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2

3 x USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen   2)

1 x Audio line out

1 x RJ45 port (2.5G)

1 x USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) with BC1.2 power charging

1 x USB Type-C downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) with power charging (15W)

Adjustability

Height, Tilt, Swivel, Pivot

Height adjustable

150 mm

Tilt

-5°/+21°

Swivel

-45°/+45°

Pivot

-90°/+90°

PbP / PiP

Yes

Keyboard, Video and Mouse ( KVM)

Yes

Daisy Chain Availability

Yes

Audio Output

1 x Audio line-out

Built-in Speaker

No

Security

Security lock slot (cable lock sold separately)

Anti-theft stand lock slot (to lock stand to monitor using screw)

Compliant Standards

ENERGY STAR certified Monitor.

EPEAT registered where applicable.

EPEAT registration varies by country.

See https://www.epeat.net for registration status by country.

TCO Certified & TCO Certified Edge.

RoHS Compliant.

BFR/PVC Free monitor (excluding external cables).

Arsenic-Free glass and Mercury-Free for the panel only

Flat Panel Mount Interface

VESA mounting holes (100 mm x 100 mm - behind attached VESA Cover)

What's Included

Monitor, Stand Riser, Stand Base, Quick setup guide, Safety, Environmental and Regulatory Information, Factory calibration report

Cables Included

1 x Power cable

1 x DisplayPort 1.4 cable - 1.8 m

1 x USB Type-A to USB Type-C Gen 2 cable - 1 m

1 x ThunderboltTM 4 cable - 1 m

Voltage Required

100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 2.65 A (typical)

Power Consumption (On mode)

24.4 W

Power Consumption (Max)

225 W

Power Consumption Stand by

0.5 W

Power Consumption (Off Mode)

0.3 W

Networked standby mode

1.5 W

Dell Display Manager   Compatibility

Yes , Easy Arrange, Other key features

Temperature Range

Operating: 0°C to 40°C (32°F to 104°F)

Non-operating: –20°C to 60°C (–4°F to 140°F)

Humidity Range

Operating: 10% to 80% (non-condensing)

Non-Operating: 5% to 90% (non-condensing)

Altitude

Operating: 5000 m (16404 ft) max

Non-Operating: 12192 (40000 ft) max

PHYSICAL CHARACTERISTICS

Height with stand (Compressed ~ Extended)

385.58 mm ~ 535.58 mm

Width with stand

612.24 mm

Depth with stand

192.28 mm

Height without stand

352.51 mm

Width without stand

612.24 mm

Depth without stand

50.12 mm

Weight (panel only - for VESA mount)

5.23 kg

Weight (with stand assembly and   cables)

7.37 kg

Weight (with packaging)

10.21 kg
