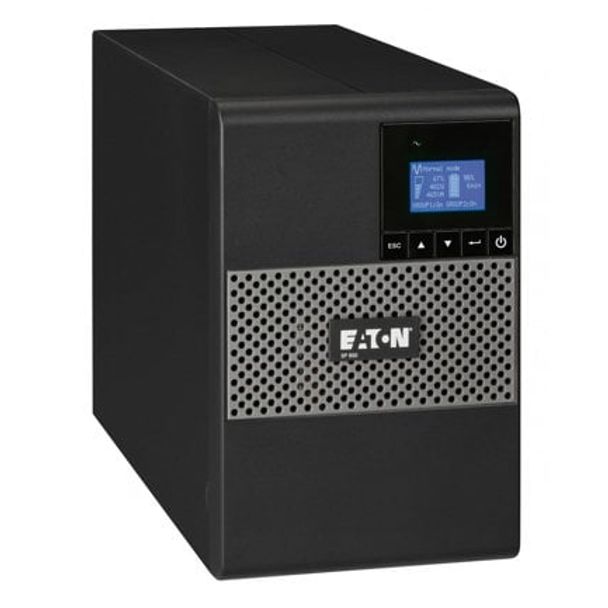

Eaton 5P1550AU 5P 1550 VA / 1100 Watts UPS

Eaton 5P 1550 VA / 1100 Watts UPS - 5P1550AU

Eaton 5P UPS - Features

• Line interactive : Regulates power fluctuations (AVR with buck and boost), and delivers pure sinewave output
• Intuitive graphical LCD for localised diagnostics at a glance
• Individually controlled outlets to maximize backup time, provide remote reboot and sequential start-up
• Hot swappable batteries allowing easy replacement of the batteries without powering down connected loads
• High density power protection in tower and rack 1U format up to 1.5kVA
• Best-in-class power management capabilities (USB & Serial ports, Slot for optional SNMP/Web card)

eneral
Topology	Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Configuration	Tower
Part Number	5P1550AU
Rating (VA/Watts)	1550/1100
Dimensions (H x W x D, mm)	230 x 150 x 445
Weight (kg)	15.6
Warranty	3 years on electronics, 2 years on batteries
Contents (Ships with the following items)	5P UPS Eaton Intelligent Power Software CD USB cable Serial cable Safety guide Quick start guide CD with 10-language user manual
Electrical Input
Connection	(1) Aust. 10A
Input Voltage Without Using Batteries	160V-294V (adjustable to 150V-294V)
Input frequency Range Without Using Batteries	47 to 70Hz (50 Hz system), 56.5 to 70Hz (60 Hz system), 40Hz in low-sensitivity mode
Electrical Output
Voltages	230 V (+6/-10 %) (Adjustable to 200V / 220V / 230V / 240V)
Output Receptacles	(3) IEC-320-C13 (2) Aust. 10A
Remotely controlled sockets	2 groups of 1 x AU (10 A) output receptacles
Output Frequency	50/60 Hz +/- 0.1 % (autosensing)
Battery
Battery Management	ABM® & temperature compensated charging method (user selectable), automatic battery test, deep discharge protection
Cold start (No mains power)	Yes
Communications
User Interface	3 LEDS + Multilingual LCD : access to measures, alarm messages and customization
Communication Ports	1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously), 1 mini-terminal block for remote ON/OFF and Remote Power Off
Communications Card Slots	1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Environmental & Standards
Audible Noise	< 40 dBA
Operating Temperature	0 to 40°C
Safety markings	IEC/EN 62040-1
EMC Markings	IEC/EN 62040-2 class B (EMC), IEC/EN 62040-3 (performance), C-Tick
Approvals	CE, CB report
Quality	Designed, manufactured and marketed under ISO9001 & ISO14001 quality system
