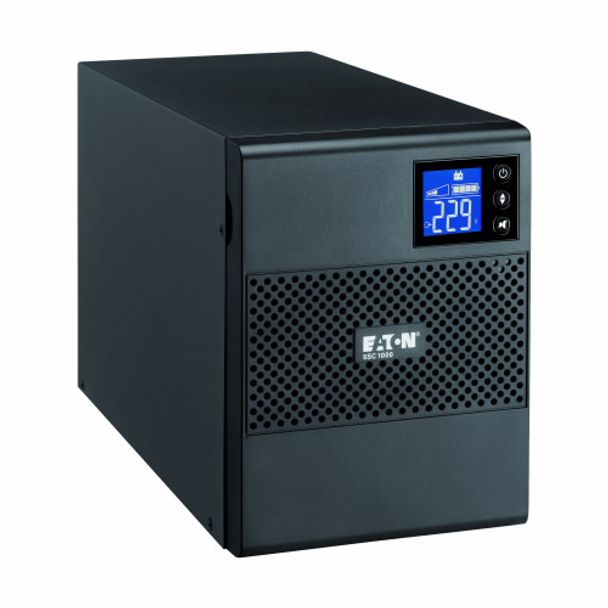

Eaton 5SC1000I 5SC 1000VA / 700W Mini Tower UPS, 8 x IEC Sockets
Model
5SC1000I
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$824.00
Eaton 5SC 1000VA / 700W Mini Tower UPS, 8 x IEC Sockets
GENERAL SPECIFICATIONS
PRODUCT NAME
Eaton 5SC UPS
CATALOG NUMBER
5SC1000I
PRODUCT LENGTH/DEPTH
150 MM
PRODUCT HEIGHT
210 MM
PRODUCT WIDTH
340 MM
PRODUCT WEIGHT
11.1 KG
WARRANTY
2 year
COMPLIANCES
CE Marked
TUV
TUV
CERTIFICATIONS
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus
BATTERY
RUNTIME GRAPH
View runtime graph ![View runtime graph]()
BATTERIES REPLACEMENT
User replaceable
BATTERY QUANTITY
2
BATTERY MANAGEMENT
ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
BATTERY RATING
12V/9 Ah
EXTENDED BATTERY CAPABILITY
No
ELECTRICAL OUTPUT
RECEPTACLE
(8) C13
OUTPUT FREQUENCY
50-60 Hz
VOLTAGE
230V
OUTPUT NOMINAL VOLTAGE
230V default (220/230/240V)
VA RATING
1000 VA
WATTAGE
700 W
OUTPUT WAVEFORM
Sine wave
OUTPUT POWER FACTOR
0.7
OUTPUT VOLTAGE RANGE
230V (+6%/-10%)
FEED TYPE
1
TOPOLOGY
Line-interactive
ELECTRICAL INPUT
INPUT CONNECTION
C14
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
NOMINAL FREQUENCY
50-60 Hz
INPUT VOLTAGE RANGE
184-276V
INPUT FREQUENCY RANGE
45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system)
COMMUNICATIONS
COMMUNICATION
1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
ETHERNET INTERFACE
No
POTENTIAL FREE SWITCH CONTACT
No
EXPANSION SLOTS
No
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Protector
TYPE OF INTERFACE
Other
ENVIRONMENTAL
ALTITUDE
2000 m
NOISE LEVEL
<40 dB at 1 meter
TEMPERATURE RANGE
0-90% non-condensing
BTU RATING
Online: 143
RELATIVE HUMIDITY
0-90% non-condensing
ADDITIONAL SPECIFICATIONS
ENCLOSURE
Black
PACKAGE CONTENTS
USB cable
Serial cable
(2) IEC-IEC cables
QuickStart
Safety Instructions
Serial cable
(2) IEC-IEC cables
QuickStart
Safety Instructions
PHASE (OUTPUT)
1
AUTO SHUTDOWN FUNCTION
Yes
COLOR
Black
EFFICIENCY
96%
PHASE (INPUT)
1
| GTIN | 743172045164 |
|---|
