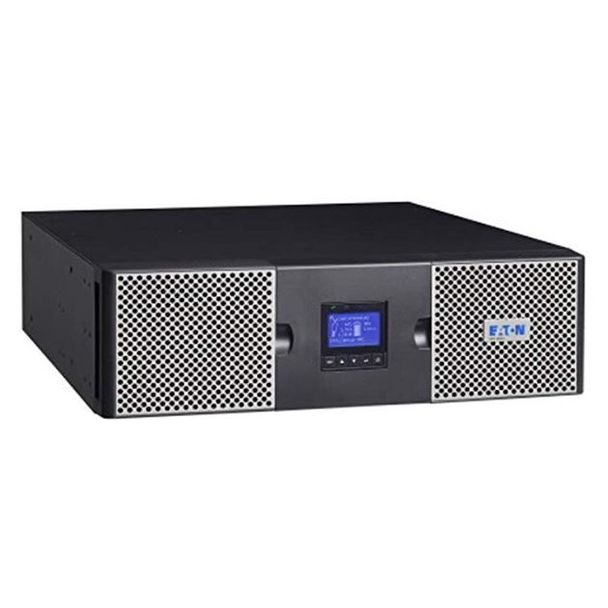

Eaton 9PX3000IRT3UANZ 9PX 3000VA 3U Rack/Tower 16Amp In
Model
9PX3000IRT3UANZ
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$5,652.00
Eaton 9PX UPS, ANZ, RT3U, 3000VA, 3000W, 240VAC, Input: IEC C20, Output: IEC C13 x 8 and IEC C19 x 2, built-in battery, Multilingual graphical LCD display
GENERAL SPECIFICATIONS
PRODUCT NAME
Eaton 9PX UPS
CATALOG NUMBER
9PX3000IRT3UANZ
PRODUCT LENGTH/DEPTH
440 MM
PRODUCT HEIGHT
130 MM
PRODUCT WIDTH
485 MM
PRODUCT WEIGHT
27.41 KG
COMPLIANCES
CB
CE Marked
RCM
CE Marked
RCM
CERTIFICATIONS
IEC/EN 62040-2
IEC 61000-4
EN 62040-3
IEC/EN 62040-1
IEC 61000-4
EN 62040-3
IEC/EN 62040-1
PRODUCT SPECIFICATIONS
OUTPUT WAVEFORM
Sine wave
AUTO SHUTDOWN FUNCTION
Yes
VA RATING
3000 VA
WATTAGE
3000 W
OUTPUT POWER FACTOR
1.0
FORM FACTOR
Rack/tower
RECEPTACLE
IEC C13 x 8, IEC C19 x 2
PHASE (INPUT)
1
INCLUDES NETWORK CARD
No
NOISE LEVEL
<40 dB at 1 meter
RUNTIME GRAPH
View runtime graph
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
USER INTERFACE
Multilingual graphical LCD display
BATTERIES REPLACEMENT
Hot swappable
BATTERY TYPE
Sealed, lead-acid
VOLTAGE
240V
HOT SWAP POWER
No
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
RELATIVE HUMIDITY
0-96% non-condensing
CONSTRUCTION TYPE
482.6 mm (24 inch) device
COLOR
Black/silver
EXTENDED BATTERY CAPABILITY
Yes
TOPOLOGY
Online/Double-conversion
OUTPUT FREQUENCY
50/60 Hz
OUTPUT NOMINAL VOLTAGE
240V
INPUT NOMINAL VOLTAGE
240V
EXPANSION SLOTS
One slot for optional communication card
INPUT VOLTAGE RANGE
176-276VAC without derating (up to 100-276VAC with derating)
INPUT FREQUENCY RANGE
40-70 Hz
INTERNAL BYPASS
Yes
NOMINAL FREQUENCY
50/60 Hz
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
ALTITUDE
<1000m for nominal power, 10% power degrading every 1000m (up to 3000m)
| GTIN | 743172081391 |
|---|
