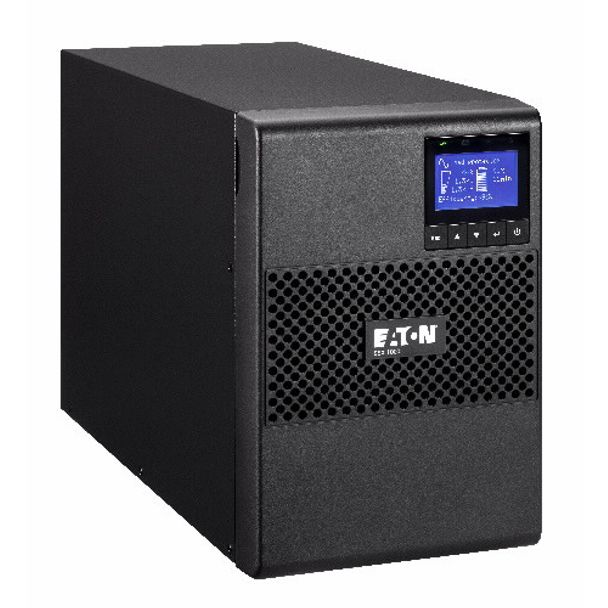

Eaton 9SX1500I-AU 9SX 1500VA/13500W On Line Tower UP
Model
9SX1500I-AU
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | Available in 24 Hours |
West Melbourne (Pickup) | Available in 24 Hours |
$2,455.00
Eaton 9SX1500I-AU 9SX 1500VA/13500W On Line Tower UP
Eaton 9SX 1500I
| General | |
| Topology | On-line double conversion with PFC (Power Factor Correction) system |
| Configuration | Tower |
| Part Number | 9SX1500I-AU |
| Rating (VA/Watts) | 1500/1350 |
| Dimensions (H x W x D, mm) | 252 x 160 x 437 |
| Warranty | 2 years |
| Electrical Input | |
| Connection |
(1) IEC-320-C14
 |
| Input Voltage Range | 190-276V without derating (up to 120–276V with derating) |
| Nominal Voltage | 200/208/220/230/240V |
| Frequency | 50/60 Hz autoselection |
| Frequency Range | 40-70 Hz |
| Electrical Output | |
| Output Receptacles |
(4) Aust. 10A
 |
| Output Frequency | 50/60 Hz autoselect, frequency converter as standard |
| Battery | |
| Battery Management | ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units. |
| Extended Battery Capability | EBM |
| Communications | |
| User Interface | Multilingual graphical LCD display |
| Communication Ports | 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay |
| Communication Slot | 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards |
| Environmental & Standards | |
| Audible Noise | <43dB |
| Operating Temperature | 0 to 40°C continuous |
| Safety markings | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| EMC Markings | IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B |
| Approvals | CE /CB report (TUV) / cULus / EAC / RCM |
