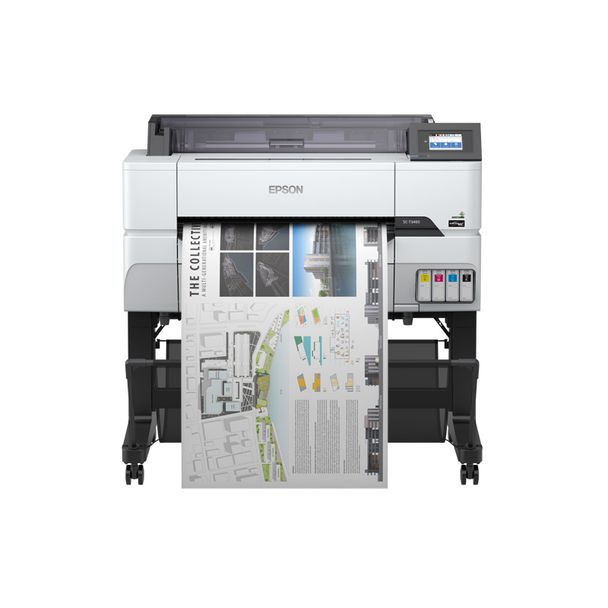

Epson C11CJ55401 SureColor T3465 Large Format Printer
Model
C11CJ55401
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$3,879.00
- High Productivity – prints an A1 image in as little as 25s and includes an integrated auto-cutter
- High Precision – 2400 x 1200 dpi resolution Epson PrecisionCore print head with Variable Sized Dot Technology (VSDT) for super fine lines, superior half tones, solid and consistent colour
- High Durability – all-pigment Epson UltraChrome XD2 ink dries almost instantly to be moisture & scratch resistant
- High Reliability – solid construction backed with a comprehensive 'heads-n-all' warranty with service cover extendable up to 5 years
- High Flexibility – supports roll paper up to 24" (610 mm) wide, sheet paper up to A1 and has optional MFP functionality with the addition of a A4/A3 desktop scanner
- High Convenience – large 4.3" touchscreen panel with an easy to use interface, has front loaded ink and media, a Barcode Roll Media Management system and comes with a stand and basket to catch your prints
- Low Running Cost – ultra-low power consumption, uses individual colour cartridges in a choice of sizes up to 700 ml and you can track how much your prints are costing with the LFP Accounting tool
- Easy Integration – compact design, high speed Gigabit Ethernet, convenient WiFi/ WiFi Direct & AirPrint support, HP-GL/2 & RTL emulation
- Greater Connectivity – Connect a USB thumb drive to the printer and print JPEG or TIFF images directly from the USB
| TECHNICAL & CAD - PRINTER | |
|---|---|
| PRODUCT NAME | SureColor T3465 - 24" |
| SIZE | |
|---|---|
| Max Print Width | 24 inch wide (610mm) |
| PRINT TECHNOLOGY | |
|---|---|
| Print Head | PrecisionCore TFP with VSDT and Auto Head Alignment |
| Print Modes | Uni & Bi-directional |
| Nozzle Configuration | 800 per colour |
| Maximum Resolution | 2400dpi x 1200dpi |
| Minimum Ink Droplet Size | 4.0pl |
| INK SYSTEM | |
|---|---|
| Family | Epson Ultrachrome® XD2 |
| Type | All-Pigment Aqueous |
| Colours | C+M+Y+K |
| Cartridges | CMYK 110ml CMYK 350ml CMYK 700ml |
| PERFORMANCE (per Sheet) | |
|---|---|
| CAD A1 | 25sec |
 Figures represent print times only for Epson test sample images as shown produced on plain paper in speed mode. Additional processing time may be required with individual results likely to vary depending on print mode, software, operating environment, media, data file size/type. |
|
| MEDIA SUPPORT | |
|---|---|
| Roll Format | Single roll top loaded spindle, 2" core, 3" core for plain paper, 0.08 to 0.3mm thick, 254-610mm wide, 170mm max diameter, max weight 8kg |
| Sheet Format | Top loaded A4-A1 single sheets, 279.4 to 1,580 mm length, 0.08-0.3mm thick |
| Borderless Printing | Supported Media Types: A1 (594mm) and A1+ (610mm) Cut Sheet only borderless to the left and right of the sheet |
| Auto Cutter | Inbuilt rotary type |
| Manual Double Sided Printing | Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability. |
| Output | Printer Stand incorporates a media basket |
| OPERATION | |
|---|---|
| Control Panel | 4.3" Colour LCD touch screen |
| Control Code | ESC/P2, ESC/P Raster, HP/GL/2 & HP RTL* 1 |
| Connectivity | USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print |
| Included Software | Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only) |
| Software via web download | HDI driver, CopyFactory, EpsonNet SetupManager, Epson Device Admin, Epson Edge, Epson Print Automate, Dashboard, LFP Accounting tool |
| Roll Management System (Roll Format) | Barcode Roll Media Management system helps keep track of the type of media and how many metres is left on the roll |
| USB Input | Front panel USB slot enables JPEG and TIFF files to be printed direct from a thumb drive |
| Compatibility | Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later |
| Memory | 1GB RAM |
| Business Inkjet Printer Support | USB interface with integrated copy and enlargement support for the following printers: WF-C20590 series, WF-C17590 Series, WF-M20590 Series, WF-C20600 Series, WF-20750 Series, WF-21000 Series, WF-R8590 Series, WF-8590 Series, WF-C869R, WF-878R Series, WF-879R Series |
| Scanner Support | USB interface with integrated control & auto enlargement Supports 5x7", Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizes Supports A2, US-C (17x22"), B2, US-D (22x34"), A1 & custom (89-610mm wide) output page sizes Supports Epson DS-530, DS-6500 & DS6000 scanner models |
| Physical (WxDxH) | 1080 × 750 × 1070 mm, 64kg (floor standing, closed basket, no ink, media or options) 1080 × 966 × 1070 mm, 64kg (floor standing, open basket, no ink, media or options) |
| ARM 64 Processor Compatibility | IMPORTANT NOTICE: A number of printer drivers have been found to have compatibility issues with Windows PCs that feature an ARM 64 processor. Epson is currently reviewing our current and recent model ranges with a view to issuing updates. Unfortunately, although we will roll these out as quickly as we can the process is not expected to be completed until early 2026. In the interim we do not recommend operation with this type of equipment. |
| ENVIRONMENT | |
|---|---|
| Operational Temp | 10° to 35° C |
| Operational Humidity | 20 to 80% (40 to 60% is recommended for no condensation) |
| Power Supply | 100 - 240 V AC, 50/60 Hz |
| Power Consumption | 34W Operating, 13W Standby, 1.3W Sleep |
| Operating Noise | 50dB |
| Recommended Install Space (WxHxD) | Floor-standing: 1080 × 750 × 1070 mm |
