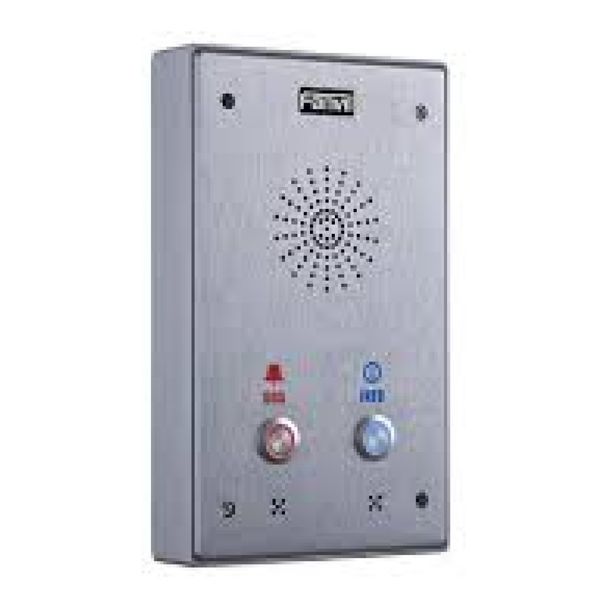

Fanvil I12D 2 Outdoor Audio Intercom

Model

I12D 2

Location	Availability
Online (Delivery)	Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)	Available from Supplier (2 to 7 Working Days)
Preston (Pickup)	Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)	Available from Supplier (2 to 7 Working Days)

$355.10

i12D 2 – FANVIL Audio Door Intercom – 2 SIP Lines

Features:

2 SIP Lines
PoE enabled(Power over Ethernet)
Full-duplex speakerphone
Intelligent DSS Keys (Speed dial)
Wall-mount installation
Special integrated noise reduction module
Omnidirectional voice pickup
2 embedded short-circuit input interfaces
2 embedded short-circuit output interfaces. Support 4 controlled events: remote DTMF; remote server‚Äôs commands; interaction with short circuit input; talking status
Output interface for active speaker
Audio record output interface
External Power Supply
Multicast
All in ONE: door access, intercom and paging service
Industrial standard certifications: IP65, IK10, CE/FCC

Call Features:

Phone Features:

Audio:

Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
Wideband CODEC: G.722
Full-duplex Acoustic Echo Canceller (AEC) ‚ Handsfree mode, 96ms tail-length
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic adaptive jitter buffer up to 300ms
DTMF: In-band, Out-of-Band ‚Äì DTMF-Relay (RFC2833)/ SIP INFO
Omnidirectional voice pickup: pickup distance to 5 m. Networking
Physical: RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Enabled), LAN x1 (Bridged to Network)
IP configuration: Static / DHCP / PPPoE
Network access control: 802.1x
VPN: L2TP (Basic Unencrypted) / OpenVPN
VLAN
QoS

Protocols:

Deployment & Maintenance:

Physical Specifications:

2 Hands-free keys or DSS Keys (Speed dial)
Rj45 Ethernet Jacket x2: Network x1 (802.3AF POE enabled), LAN x1 (Bridged to network)
Main chipset: Broadcom
Passive switch(short-circuit output): normally open and normally closed highest at 30V/1A AC/DC
Audio Amplifier: 2.5W
Output interface for active speaker
Audio record output interface
2 embedded short-circuit input interfaces/2 embedded short-circuit output interfaces
Cables: CAT5 or better
Power supply 9~16V/1A DC or PoE
Shell material: Aluminum cover and backcase
Protection level: IP65 and IK10
Working temperature:-40~70°C
Storage temperature:-40~70°C
Working humidity: 10~90%
Overall dimension: 195x120x39mm (W x H x L)
Package dimensions: 260x165x62mm (W x H x L)
Package weight: 0.85KG
