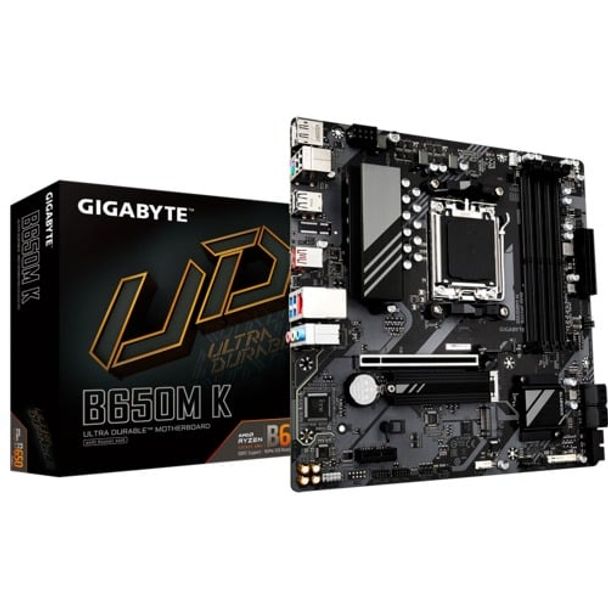

Gigabyte GA-B650M-K B650M K AM5 mATX Motherboard

Model
GA-B650M-K
LocationAvailability
Online (Delivery)
In Stock
Notting Hill (Pickup)
In Stock
Preston (Pickup)
Available in 24 Hours
West Melbourne (Pickup)
Available in 24 Hours
$185.00
Gigabyte GA-B650M-K B650M K AM5 mATX Motherboard

B650M K

SPECIFICATIONS

CPU

AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

Chipset

AMD B650

Memory

Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 /   4800 / MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM   capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and   Extreme Memory Profile (XMP) memory modules

Onboard Graphics



Integrated Graphics Processor:

1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio   software. To configure 7.1-channel audio, access the audio software for audio   settings.

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

CPU:

1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD   support)

1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2   SSD support)

Chipset:

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

2 x USB 2.0/1.1 ports on the back panel

Chipset:

1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available   through the internal USB header)

4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available   through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0   SPI 2.0 module only)

1 x reset jumper

1 x Clear CMOS jumper

Back Panel Connectors

1 x DisplayPort

1 x HDMI port

4 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x USB 3.2 Gen 2 Type-A port (red)

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x Q-Flash Plus button

1 x RJ-45 port

2 x USB 3.2 Gen 1 ports

3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model.   Supported functions of each application may also vary depending on   motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Bundled Software

Norton® Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

More Information
CPU SocketAM5
Form FactormATX
