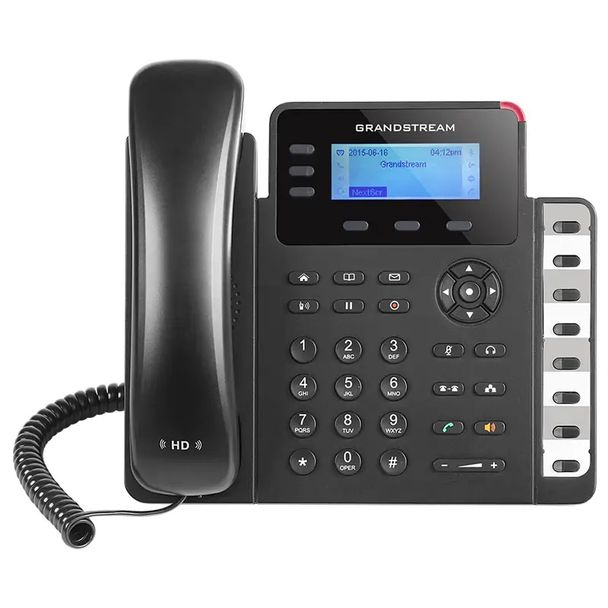

Grandstream GXP1630 3 Line IP Phone
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | Available in 24 Hours |
West Melbourne (Pickup) | Available in 24 Hours |
The GXP1630 comes equipped with a suite of VoIP features that are deployed in a clear and easy-to-use fashion. Focused primarily for low to medium call volumes and efficient call handling, its 3 line/SIP account design and 8 dual-colored BLF/speed dial keys gives this versatility. The GXP1630 also supports the best possible connection speeds and call quality with its dual Gigabit ports and HD audio on both speakerphone and handset. With other features such as its integrated PoE, 3 XML programmable soft keys and 4-way conferencing support, the GXP1630 is a high-quality and versatile Basic IP phone.
As all Grandstream IP phones do, the GXP1630 features state-of-the-art security encryption technology (SRTP and TLS). The GXP1630 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.
-
3 SIP accounts, 3 line keys, 4-way conferencing, 3 XML programmable context-sensitive soft keys
-
HD audio on speakerphone and handset
-
Dual-switched Gigabit ports, integrated PoE
-
8 dual-colored BLF/speed dial keys
-
EHS support for Plantronics headsets
-
Up to 1000 contacts, call history up to 200 records
SPECIFICATIONS
|
Protocols/Standards |
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, CDP/SNMP/RTCP-XR |
|
Network Interfaces |
Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports, integrated PoE |
|
Graphic Display |
132 x 64 (2.98’’) backlit graphical LCD display |
|
Feature Keys |
3 line keys with dual-color LED and 3 SIP accounts, 3 XML programmable context sensitive soft keys, 5 (navigation, menu) keys, 8 BLF keys, 13 dedicated function keys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE, HOLD, PAGE/INTERCOM, RECORD, HOME |
|
Voice Codecs |
Support for G.711µ/a, G.722 (wide-band), G.723, G.726-32, G.729 A/B, iLBC, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC |
|
Telephony Features |
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 4-way conference, shared-call-appearance (SCA) / bridged-line-appearance (BLA), downloadable phone book (XML, LDAP, up to 1000 items), call waiting, call history (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones, server redundancy & fail-over |
|
Headset Jack |
RJ9 headset jack (allowing EHS with Plantronics headsets) |
|
HD Audio |
Yes, HD handset and speakerphone with support for wideband audio |
|
Base Stand |
Yes, 2 angled positions available, wall mountable |
|
Wall Mountable |
Yes |
|
QoS |
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS) |
|
Security |
User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control |
|
Multi-language |
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more |
|
Upgrade/Provisioning |
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file, FTP/FTPS |
|
Power & Green Energy Efficiency |
Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA; PoE: IEEE802.3af Class 2, 3.84W-6.49W; IEEE802.3az (EEE) |
|
Physical |
Dimension: 222.5mm (L) x 208.5mm (W) x 76.2mm (H) (with handset) Unit weight: 0.8kg; Package weight: 1.2kg |
|
Temperature and Humidity |
Operation: 0°C to 40°C, Storage: -10°C to 60°C , Humidity: 10% to 90% Non-condensing |
|
Package Content |
GXP1630 phone, handset with cord, base stand, universal power supply, network cable, Quick Installation Guide, brochure, GPL License |
| GTIN | 6947273701927 |
|---|
