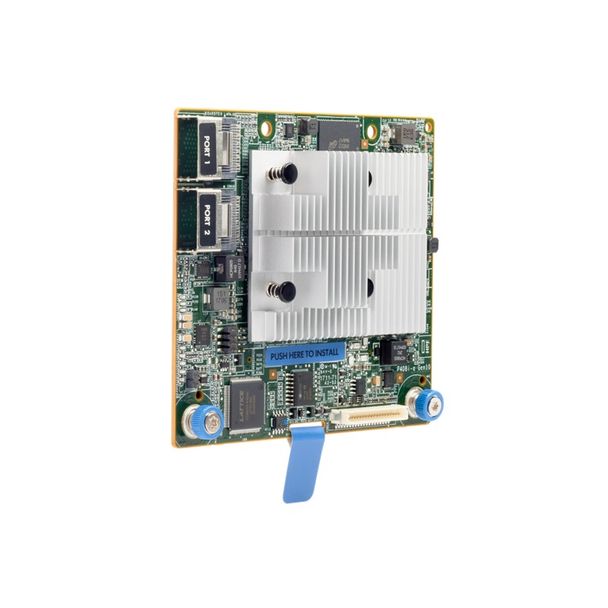

HPE 804331-B21 Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller

The HPE Smart Array P408i-a SR Gen10 Controller, supporting 12 Gb/s SAS and PCIe 3.0, provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs. This controller has eight internal SAS lanes, allowing connection to SAS or SATA drives, supports Mixed Mode operations of RAID and HBA simultaneously, and offers encryption for data-at-rest on any drive. The Smart Array P408i-a SR Gen10 Controller is ideal for maximizing performance while supporting advanced RAID levels with 2 GB Flash-Backed Write Cache (FBWC). This type-a modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot.

The Gen10 controllers are supported by the HPE Smart Storage Battery. The HPE Smart Storage Battery supports multiple devices and is sold separately.

Servers supportedHPE ProLiant DL360 Gen10
HPE ProLiant DL380 Gen10
HPE ProLiant ML350 Gen10
HPE ProLiant XL450 Gen10

Form factorType-a modular controller

PortsInternal: 8 SAS lanes across 2 x4 Mini-SAS ports

WarrantyThe warranty for this device is 3 years parts only.

Transfer rate12Gb/s SAS per lane
6Gb/s SATA per lane
PCI Express 3.0 x8 lane width

Cache2 GB Flash-Backed Write Cache

CertificationsFIPS 140-2 Level 1 Implementation Under Test with expected validation in 2018

Additional featuresHPE Smart Array SR Secure Encryption (optional license)
HPE Smart Array SR SmartCache (optional license)
