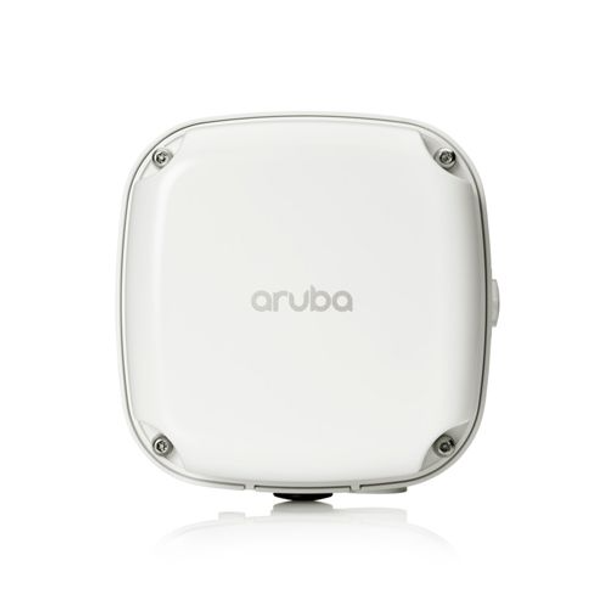

HPE Aruba R4W48A AP-567 RW Outdoor 11ax Access Point

Model

R4W48A

Location	Availability
Online (Delivery)	Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)	Available from Supplier (2 to 7 Working Days)
Preston (Pickup)	Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)	Available from Supplier (2 to 7 Working Days)

$2,296.80

Details

Cost-effective Wi-Fi 6 outdoors

Entry-level outdoor connectivity in environmentally challenging locations. Industrial-strength surge protection. Endures extreme temperatures, persistent moisture, precipitation, airborne contaminants, dust, salt sprays, and max 165 mph wind speeds.

Groundbreaking Wi-Fi 6 capabilities

Supports wired and wireless connectivity, in a single device, for up to 1.5 Gbps wireless throughput and 256 associated clients per radio.

1.5 Gbps maximum speed (HE80/HE20)

Delivers higher speed and reliability for environmentally challenging work and indoor environments.

Wi-Fi 6 for OFDMA and WPA3

Handles multiple clients regardless of device or traffic type, plus WPA3 and Enhanced Open increases enterprise security, plus Client Match eliminates sticky client issues.

IoT-ready Bluetooth 5 and 802.15.4/Zigbee support

Simplifies deploying and managing IoT location services, asset-tracking services, security solutions, and IoT sensors.

Dynamic Segmentation and policy-enforcement firewalls

Enforces (automatically) consistent policies across all networks, keeping users and devices secure.

AI-powered, Wi-Fi radio frequency RF with AirMatch

Utilizes AI learning, Air Match provides automated RF optimization and looks at analytics across the entire network.

Air Slice for SLA-grade performance

Guarantees a predictable user experience, prioritizing traffic and arrival of time-sensitive data with Air Slice application.

Specifications

Hardware Variants
AP-565 Built-in Omni Directional Antennas 5 GHz Antennas 5.4 dBi 2.4 GHz Antennas 3.2 dBi BLE/802.15.4 Antennas 3.3d Bi AP-567 Built-in 90°H x 90°V Directional Antennas 5 GHz Antennas 6.8 dBi 2.4 GHz Antennas 7.1 dBi BLE/802.15.4 Antennas 3.0 dBi

Wi-Fi Radio Specifications

AP type:
- Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
5GHz:
- Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously
2.4GHz:
- Two spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with individual 2SS HE40 (HE20) 802.11ax client devices or with two 1SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously
Up to 256 associated client devices per radio
Up to 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
- 5.850 to 5.925 GHz
- 5.825 to 5.875 GHz
Available channels: Dependent on configured regulatory domain
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
- 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU)
Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
- 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11n high-throughput (HT) support: HT 20/40
802.11ac very high throughput (VHT) support: VHT 20/40/80
802.11ax high efficiency (HE) support: HE20/40/80
Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM
- 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM
- 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
802.11n/ac/ax Packet aggregation: A-MPDU, A-MSDU
Transmit power: Configurable in increments of 0.5 dBm
Maximum (conducted) transmit power (limited by local regulatory requirements):
- 2.4 GHz band: +23 dBm per chain, +26 dBm aggregate (2x2)
- 5 GHz band: +23 dBm per chain, +26 dBm aggregate (2x2)
- Note: conducted transmit power levels exclude antenna gain.
Maximum EIRP (limited by local regulatory requirements):
- 2.4 GHz band:
  - 565: 29.2 dBm EIRP
  - 567: 33 dBm EIRP
- 5 GHz band:
  - 565: 31.4 dBm EIRP
  - 567: 32.7 dBm EIRP
Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) to enable the use of multiple transmit antennas
Short guard interval for 20-MHz, 40-MHz, and 80-MHz
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range

Power

Maximum (worst-case) power consumption:
- 15.6W
Maximum (worst case) power consumption in idle mode:
- 4.2W
Maximum (worst case) power consumption in deep-sleep mode:
- 1.7
Power sources sold separately
Power over Ethernet (PoE+):
- 802.3at-compliant
When powered by 1x 802.3at, there are no restrictions
When powered by 1x 802.3af with IPM enabled, the AP will start up in unrestricted mode, but may dynamically apply restrictions depending on the POE budget and actual power. The feature restrictions can be programmed.
When powered by 1x 802.3af with IPM disabled, the AP will lower the 2.4Ghz radio to 1x1:1

Additional Interfaces

E0: 10/100/1000BASE-T (RJ-45)
- Auto-sensing link speed and MDI/MDX
- PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 3 or higher)
- 802.3az Energy Efficient Ethernet (EEE)
Bluetooth 5 and 802.15.4 radio
- 2.4 GHz
- Bluetooth 5: up to 8 dBm transmit power and -95 dBm receive sensitivity
- Zigbee: up to 8 dBm transmit power and -97 dBm receive sensitivity
- Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity
Visual indicator (multi-color LED): For system and radio status
Reset button: Factory reset (during device power up)
USB-C console interface

Mounting
AP-270-MNT-V1 AP-270-MNT-V2 AP-270-MNT-H1 AP-270-MNT-H2 AP-270-MNT-H3

Mechanical
AP-565 Dimensions/weight (excluding mount): 16.5 cm (W) x 16.5 cm (D) x 11 cm (H) 6.5” (W) x 6.5” (D) x 4.3” (H) 1.03 kg/2.27 lbs AP-567 Dimensions/weight (excluding mount): 16.5 cm (W) x 16.5 cm (D) x 11 cm (H) 6.5” (W) x 6.5” (D) x 4.3” (H) 1.09 kg/2.4 lbs

Environmental

Operating:
- Temperature: -40° C to +55° C (-40° F to +140° F) with full solar loading
- Humidity: 5% to 95% non-condensing internal
- Rated for operation in all weather conditions
Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)
Operating Altitude: 3,000 m
Water and Dust: IP66/67
Salt Tolerance: Tested to ASTM B117-07A Salt Spray 200hrs
Wind Survival: Up to 165 Mph
Shock and Vibration ETSI 300-19-2-4
