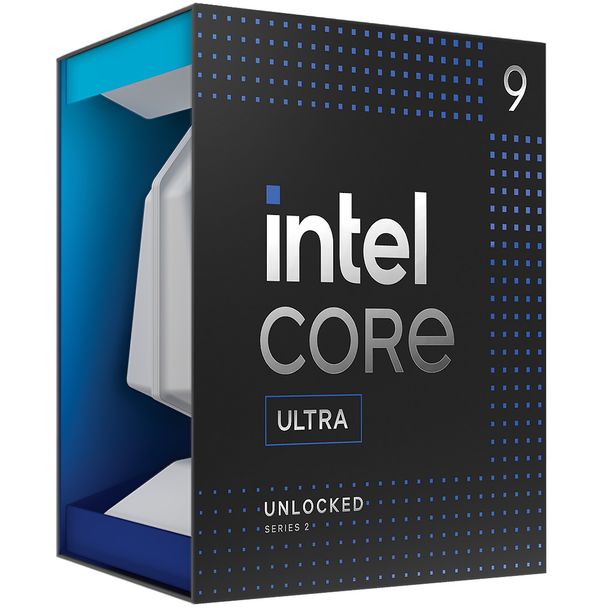

Intel BX80768285K Core Ultra 9 285K LGA1851 (36M Cache, up to 5.70 GHz) CPU Processor
Model
BX80768285K
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | In Stock |
West Melbourne (Pickup) | In Stock |
$979.00
Specifications
Performance Cores
| P-Cores | 8 |
| Base Frequency (P) | 3.7 GHz |
| Turbo Boost Frequency (P) | 5.5 GHz |
Efficient Cores
| E-Cores | 16 |
| Base Frequency (E) | 3.2 GHz |
| Turbo Boost Frequency (E) | 4.6 GHz |
Total
| Total Cores | 24 |
| Total Threads | 24 |
| L2 Cache | 40 MB |
| L3 Cache | 36 MB Intel® Smart Cache |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 250 W |
Package
| Sockets Supported | LGA-1851 |
| Thermal Solution Specification | PCG 2020A |
| Max Operating Temperature | 105°C |
Integrated GPU
| Integrated Graphics | Intel® Graphics |
| GPU Base Clock | 300 MHz |
| GPU Boost Clock | 2 GHz |
| Xe-cores | 4 |
| Max Resolution (HDMI) | 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL) |
| Max Resolution (DP) | 8K @ 60Hz |
| Max Resolution (eDP) | 4K @ 60Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3 |
| Intel® Quick Sync Video | Yes |
| # of Displays Supported | 4 |
| Device ID | 0x7D67 |
| Intel® Deep Learning Boost (Intel® DL Boost) on GPU | Yes |
Memory Support
| Memory types | Up to DDR5 6400 MT/s |
| Max Memory Capacity | 192 GB |
| Max. Memory Channels | 2 |
| Max. Memory Speed | 6400 MHz |
| ECC Support | Yes |
NPU Specifications
| NPU Name | Intel® AI Boost |
| NPU Peak TOPS (Int8) | 13 |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
| AI Software Frameworks Supported | OpenVINO™ | WindowsML | DirectML | ONNX RT | WebNN |
| GTIN | 841163091753 |
|---|
