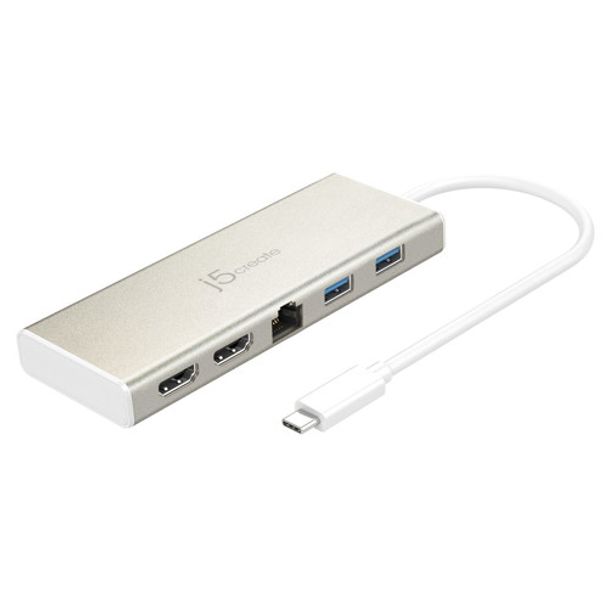

J5Create JCD381 USB Type-C Dual HDMI Mini Dock Ethernet/USB 3.1 Hub
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 3 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 3 Working Days) |
ABOUT THIS PRODUCT
The USB Type-C Dual HDMI Mini Dock provides extra connectivity from your computer with 5 Gbps faster transfer speed. This portable docking station allows you to add additional USB computer peripherals, two HDMI monitors (when using one HDMI port the max resolution is: 4K @ 30 Hz; when using two HDMI ports the max resolution is: 1080p @ 60 Hz), or a Gigabit LAN through your USB port. When connected with a power source, the USB Type-C input charging port allows you to continue charging your notebook or smartphone.
USB Type‐C is the new standard for connecting PCs and laptops and will eventually replace all current USB cables and connectors. This new USB standard can be found on laptops, phones, tablets, etc. The USB Type-C has a slim and reversible design, so there is no wrong way to plug it in. USB Type-C offers greater power delivery and faster data transfer rates of up to 5 Gbps.
PRODUCT FEATURES
Display interface
- Supports one display at max resolution: 4K @ 30 Hz
- Supports two displays at max resolution: 1080p @ 60 Hz
- Easily add an additional display through a USB 3.0 and HDMI connection
- Video playback performs at 1080p HD with a resolution of up to 4K @ 30 Hz
- Add an additional monitor without adding an expensive, internal video card, avoiding complicated installation
- Hot swappable USB enables you to add or remove monitors without rebooting your system
- Move and view your large spreadsheets across two screens without overlapping windows
- Multitask with larger landscape/desktop space
- Ideal for viewing multiple windows at the same time
USB 3.0 SuperSpeed
- Transfer rates of up to 5 Gbps, enables bulky file backup
- Backwards compatible with USB 2.0 and USB 1.1 devices
- Hot-swapping connect/disconnect without powering down
- Great for multitasking in a wide variety of applications including: phone centers, stock markets, hospitals, graphic design, editing, accounting, etc.
- A must have for surfing the web and working on your e-mail/Facebook/Twitter accounts all at the same time.
Gigabit Ethernet
- Quickly add a Gigabit Ethernet port
- IEEE 802.3, 802.3u and 802.3ab (1BASE-T, 100BASE-TX, and 1000BASE-T) compatible
- Activity and Link LED indicators
j5 Advantages
- Add multiple screens, one up to 4K high resolution. USB-C port compatible display without Alt-DP mode.
- Add 2 additional USB ports through your USB-C port.
- Supports upstream charging & power delivery 2.0 via USB Type-C charging Port
- Use with j5create’s JUP42 PD charging station for ultimate functionality.
PRODUCT SPECIFICATIONS
| Interface | |
| Host Interface | USB 3.1 Gen 1 Type-C Male |
| Video Interface | HDMI Type-A Female connector x 2 |
| Ethernet Port | Gigabit Ethernet RJ-45 Female connector |
| USB Type-A Port | USB 3.0 Female connector x 2 |
| USB Type-C Port | USB Type-C Power In x 1 port (Supports upstream charging and Power Delivery 2.0) |
| Power | |
| Power Mode | Bus-powered or self-powered |
| Functions | |
| Display | Max Resolution 4K @ 30 Hz / 1080p @ 60 Hz |
| Ethernet | Transfer Rate: 1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex) IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x Modes:
|
| Physical Specifications | |
| Dimensions | Main body: 5.1 (W) x 2.1 (H) x 0.6 (D) in. 130 (W) x 54 (H) x 15 (D) mm Cable length: 7.8 in. Cable length: 20 cm |
| Weight | Approximately: 0.25 lbs/ 113.5 g |
| Aspect Ratio | Resolution | Color Depth |
| Wide Screen Display | ||
| 16:9 | 3840 x 2160 | 32 bits |
| 8:5 | 2560 x 1600 | 32 bits |
| 16:9 | 2048 x 1152 | 32 bits |
| 16:10 | 1920 x 1200 | 32 bits |
| 16:9 | 1920 x 1080 | 32 bits |
| 16:10 | 1680 x 1050 | 32 bits |
| 16:9 | 1600 x 900 | 32 bits |
| 16:10 | 1440 x 900 | 32 bits |
| 16:9 | 1600 x 900 | 32 bits |
| 16:10 | 1440 x 900 | 32 bits |
| 16:9 | 1366 x 768 | 32 bits |
| 16:10 | 1360 x 768 | 32 bits |
| 16:9 | 1280 x 800 | 32 bits |
| 16:10 | 1280 x 768 | 32 bits |
| 16:9 | 1280 x 720 | 32 bits |
| Standard Display | ||
| 4:3 | 1600 x 1200 | 32 bits |
| 4:3 | 1400 x 1050 | 32 bits |
| 5:4 | 1280 x 1024 | 32 bits |
| 4:3 | 1280 x 960 | 32 bits |
| 4:3 | 1152 x 864 | 32 bits |
| 4:3 | 1024 x 768 | 32 bits |
| 4:3 | 800 x 600 | 32 bits |
| 4:3 | 640 x 480 | 32 bits |
System Requirements
- Mac OS X 10.8 or later
- Available USB 3.0/2.0 port (USB 3.0 recommended)
- Available USB Type-C port (USB 3.1 is recommended)
- Available USB power delivery over USB Type-C to support upstream charging
- Microsoft Windows 10/ 8.1/ 8/ 7 (32-bit or 64-bit) compatible
- Office applications / Web browsers
CPU: Intel Core i3 Dual Core 2.8 GHz
RAM: 2 GB memory or higher - One 2K (2048 x 1152 @ 60 Hz) full-screen video playback
CPU: Intel Core i5 Quad Core
RAM: 4 GB memory or higher - One 4K Ultra HD or two 2K (2048 x 1152 @ 60 Hz) full-screen video playback
CPU: Intel Core i7 Quad Core
RAM: 8 GB memory or higher
Graphics card: Intel HD Graphics 4000/ ATI HD 7xxx/ NVIDIA 5XXM or higher
Note for Video Player:
Windows 8.1/8/7 users: Windows Media Player is recommended for video playback Windows 10 users: Movies & TV is recommended for video playback
Package Contents
- USB Type-C Dual HDMI Mini Dock (JCD381)
- Driver CD
- Quick Installation Guide
