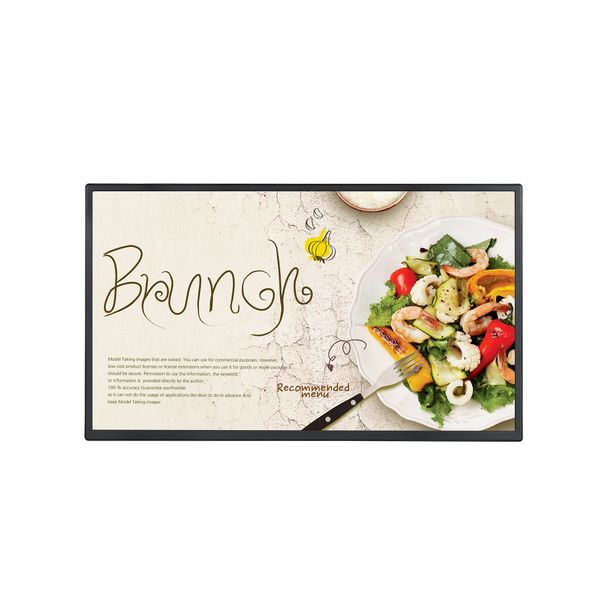

LG 32SM5J-B 32" FHD Signage Display

Tech Specs

• Panel

  Screen Size	32"
  Panel Technology	IPS
  Native Resolution	1,920 X 1,080 (FHD)
  Brightness (Typ.)	400 nit
  Contrast Ratio	1,100 : 1
  Dynamic CR	1,000,000 : 1
  Viewing Angle (H x V)	178 × 178
  Response Time	10 ms (G to G)
  Surface Treatment (Haze)	1%
  Operation Hours (Hours / Days)	24/7
  Orientation	Portrait / Landscape

• Mechanical Specification

  Bezel Color	Black
  Bezel Width	13 mm (T/R/L), 18 mm (B)
  Weight (Head)	5.7 kg
  Weight (Head+Stand)	6.5 kg
  Monitor Dimensions (W × H × D)	729.4 mm × 428.9 mm × 55.5 mm
  Monitor Dimensions with Stand (W × H × D)	729.4 mm × 481 mm × 154.2 mm
  VESA™ Standard Mount Interface	200 × 200 mm

• Feature

  Key Feature

  Internal Memory 8 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Local Key Operation, webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC (Compatibility may differ by equipment), SI Sever Setting, webRTC, Pro:Idiom

• Connectivity

  Input	HDMI (3, HDCP 2.2), USB 2.0 ( Type A)
  Output	Audio Out (Off / Fixed / Variable)
  External Control	RS-232C In/Out (Phone-jack Type), RJ45 In (LAN), IR In (Phone-jack Type)

• Environment Conditions

  Operation Temperature	0°C to 40°C
  Operation Humidity	10% to 80%

• Power

  Power Supply	AC 100-240 V~, 50/60 Hz
  Power Type	Built-In Power

• Power Consumption

  Typ./Max.	55 W / 75 W
  BTU (British Thermal Unit)	187.67 BTU/Hr (Typ.), 255.911 BTU/Hr (Max.)

• Certification

  Safety	CB / NRTL
  EMC	FCC Class “A” / CE
  ErP	No

• Software Compatibility

  SuperSign CMS	Yes
  SuperSign Control / Control+	Yes
  SuperSign WB	Yes
  SuperSign Media Editor	Yes
  LG ConnectedCare	Yes
  Promota	Yes (Not available for Europe/CIS Region)

• Sound

  Speaker	Yes (10 W × 2 EA)

• Accessory

  Basic	Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS-232C Gender
  Optional	Stand (ST-322T), Wall Bracket (LSW230B), VESA Adapter (AM-B220S)
