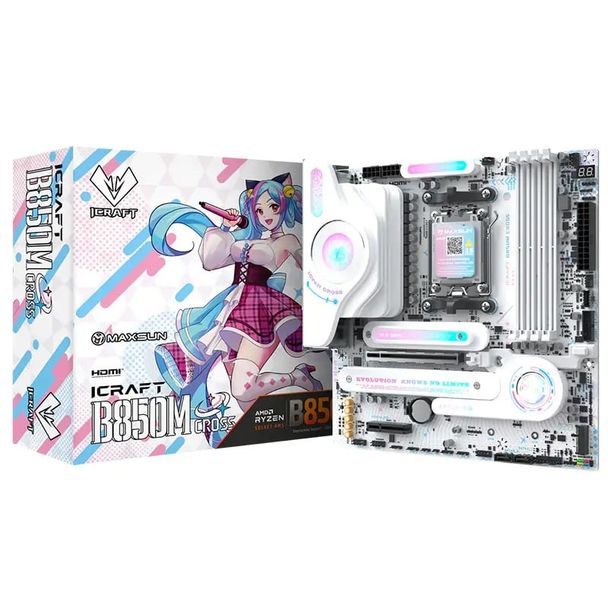

Maxsun MS-iCraft-B850M-CROSS AM5 mATX Motherboard

CPU Socket

AMD® AM5 socket, compatible with AMD® Ryzen™ 7000, 8000, 9000 series   processors

Chipset

AMD® B850 chipset

Memory

4 × DIMM DDR5, maximum capacity 256GB

Supports dual-channel memory technology

Supports AMD® EXPO overclocking

Supported frequencies:

8000(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) /   6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200(OC) / 4800 MHz

Display

1 × HDMI™ 2.0 (up to 4K@60Hz)

1 × DP 1.4 (up to 4K@60Hz)

Expansion Slots

From AMD Ryzen™ 9000/8000/7000 CPUs:

1 × PCIe X16 armored slot (PCIe 5.0 x16)

From AMD B850 chipset:

1 × PCIe X4 slot (PCIe 4.0 x4)

Audio

Realtek ALC1220 audio codec

Networking

1 × Realtek RTL8126 5Gb Ethernet

1 × MediaTek MT7925 wireless module (Wi-Fi 7 & Bluetooth® 5.4)

Storage

Supports 3 × M.2 slots and 2 × SATA 6Gb/s ports

From AMD Ryzen™ 9000/8000/7000 CPUs:

M.2_A (Key M): PCIe 5.0 x4, supports 2242/2280

M.2_B (Key M): PCIe 5.0 x4, supports 2242/2280/22110

From AMD B850 chipset:

M.2_C (Key M): PCIe 4.0 x4/x2, supports 2242/2280/22110

2 × SATA 6Gb/s ports

USB

Onboard USB:

1 × USB 20G Type-C® front port

1 × USB 5G 19-pin header (supports 2 × USB 5G ports)

1 × USB 2.0 9-pin header (supports 2 × USB 2.0 ports)

1 × USB 2.0 4-pin header (supports 1 × USB 2.0 port)

Rear USB:

1 × USB 10G Type-C® (DP 1.4 output, 4K@60Hz)

4 × USB 10G Type-A

4 × USB 2.0 Type-A

Other Parameters

1 × 24-pin ATX power connector

2 × 8-pin +12V CPU power connectors

2 × 3-pin ARGB headers

1 × 4-pin NRGB header

1 × COM port header

1 × CLR_CMOS reset header

1 × 4-pin CPU fan header

1 × 4-pin PUMP header (DC supported)

4 × 4-pin chassis fan headers
