Mikrotik RB951Ui-2HnD 600MHz 128MB 5x LAN PoE Port 5 L4
| Location | Availability |
|---|---|
Online (Delivery) | End of Life |
Notting Hill (Pickup) | End of Life |
Preston (Pickup) | End of Life |
West Melbourne (Pickup) | End of Life |

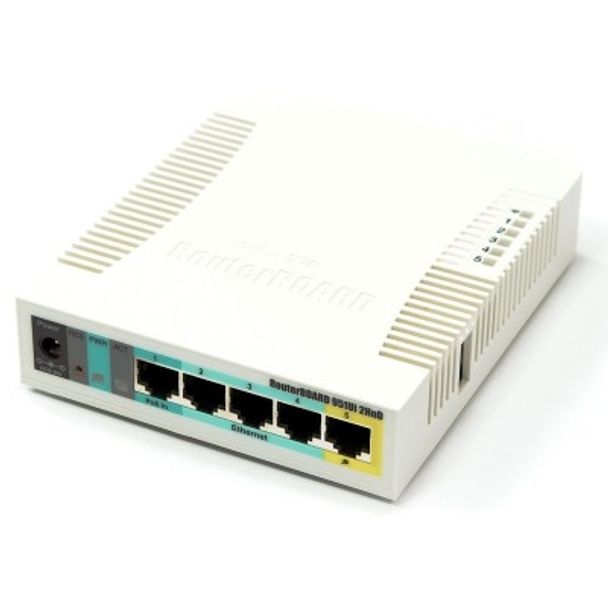

Mikrotik RB951Ui-2HnD 600MHz 128MB 5x LAN PoE Port 5 L4
The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.
It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.
Specifications
|
Details |
|
|
Product code |
RB951Ui-2HnD |
|
Architecture |
MIPSBE |
|
CPU |
AR9344 |
|
CPU core count |
1 |
|
CPU nominal frequency |
600 MHz |
|
Dimensions |
113x138x29mm |
|
License level |
4 |
|
Operating System |
RouterOS |
|
Size of RAM |
128 MB |
|
Storage size |
128 MB |
|
Storage type |
NAND |
|
Tested ambient temperature |
-20C +50C |
Powering
|
Details |
|
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
9-30 V |
|
Number of DC inputs |
2 (PoE-IN, DC jack) |
|
DC jack input Voltage |
9-30 V |
|
Max power consumption |
6.5 W |
PoE-out
|
Details |
|
|
PoE-out ports |
Ether5 |
|
PoE out |
Passive PoE |
|
Max out per port output (input < 30 V) |
500 mA |
|
Max total out (A) |
500 mA |
Wireless
|
Details |
|
|
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz standards |
802.11b/g/n |
|
Antenna gain dBi for 2.4 GHz |
2.5 |
|
Wireless 2.4 GHz chip model |
AR9344 |
|
Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
|
Details |
|
|
10/100 Ethernet ports |
5 |
Peripherals
|
Details |
|
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1 |
Certification & Approvals
|
Details |
|
|
Certification |
CE/RED, FCC, IC, EAC, ROHS |
Wireless specifications
|
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
|
6MBit/s |
30 |
-96 |
|
54MBit/s |
25 |
-80 |
|
MCS0 |
30 |
-96 |
|
MCS7 |
23 |
-78 |
| GTIN | 2000000750538 |
|---|
