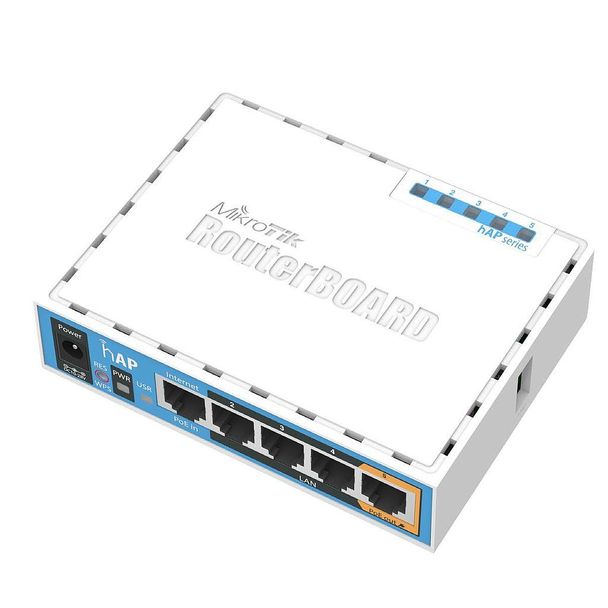

Mikrotik RB951Ui-2nD hAP 650MHz CPU 64MB RAM 5xLAN built-in 2.4Ghz 802.11b/g/n
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 3 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 3 Working Days) |
Mikrotik RB951Ui-2nD hAP 650MHz CPU 64MB RAM 5xLAN built-in 2.4Ghz 802.11b/g/n
This small home access point is the perfect device for homes or small offices where all you need is a wireless AP and a few wired devices connected. Based on our popular RB951-2n, the new hAP is an improvement in many areas.
The Mikrotik RB951Ui-2nD hAP can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included.
The hAP provides PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit.
Maximum load on the port is 500mA.
The hAP is pre configured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.
Specifications:
|
Details |
|
|
Product code |
RB951Ui-2nD |
|
Architecture |
MIPSBE |
|
CPU |
QCA9531 |
|
CPU core count |
1 |
|
CPU nominal frequency |
650 MHz |
|
Dimensions |
113 x 89 x 28mm |
|
License level |
4 |
|
Operating System |
RouterOS |
|
Size of RAM |
64 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
Tested ambient temperature |
-30 + 70 C |
Powering:
|
Details |
|
|
Max Power consumption |
5W |
|
PoE in |
Passive PoE |
|
PoE out |
Passive PoE |
|
PoE in input Voltage |
10-28 V |
|
Number of DC inputs |
2 (PoE-IN, DC jack) |
|
DC jack input Voltage |
10-28 V |
Wireless:
|
Details |
|
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz standards |
802.11b/g/n |
|
Antenna gain dBi for 2.4 GHz |
1.5 |
|
Wireless 2.4 GHz chip model |
QCA9531 |
Ethernet:
|
Details |
|
|
10/100 Ethernet ports |
5 |
Peripherals:
|
Details |
|
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1 |
Wireless specifications:
|
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
|
1MBit/s |
22 |
-96 |
|
11MBit/s |
22 |
-89 |
|
6MBit/s |
20 |
-93 |
|
54MBit/s |
18 |
-74 |
|
MCS0 |
20 |
-93 |
|
MCS7 |
16 |
-71 |
| GTIN | 5902560364644 |
|---|
