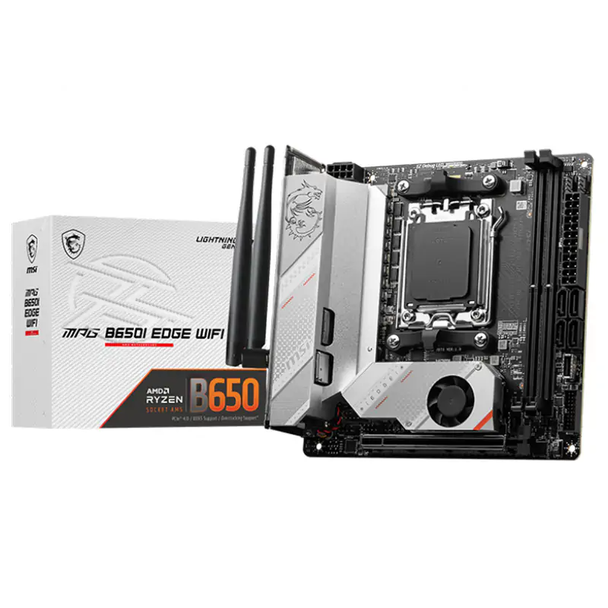

MSI MPG B650I EDGE WIFI AM5 mini-ITX Motherboard

Chipset

AMD B650

CPU support

Supports AMD Ryzen™ 7000 Series Desktop Processors

Socket AM5

Memory

2x DDR5, Maximum Memory Capacity 64GB

Memory Support DDR5 6600+(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC)   / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max. speed up to 6600+ MHz

• 1DPC 2R Max. speed up to 6000+ MHz

Support Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO™

Onboard graphics

1x HDMI™

Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion slot

1x PCI-E x16 slot

PCI_E1 PCIe 4.0 supports up to x16 (From CPU)

Multi-GPU

Supports AMD MULTI-GPU

Storage

2x M.2 slot

M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G port

RAID

Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

2x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

3x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)

LAN

Realtek® RTL8125BG 2.5Gbps LAN

Wireless / Bluetooth

AMD Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX

Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.2**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.

** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

Audio

Realtek® ALC4080 Codec

7.1-Channel USB High Performance Audio

Supports up to 32-Bit/384 kHz playback on front panel

Internal I/O

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

1x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Addressable V2 RGB LED connector (JARGB_V2)

2x USB 2.0

2x USB 3.2 Gen1 Type A

1x USB 3.2 Gen2 Type C

LED feature

4x EZ Debug LED

Back panel ports

Clear CMOS Button

USB 3.2 Gen 1 5Gbps (Type-A)

2.5G LAN

Wireless / Bluetooth

Audio Connectors

Flash BIOS Button

HDMI™

USB 3.2 Gen 2 10Gbps (Type-A)

USB 3.2 Gen 2 10Gbps (Type-A)

USB 3.2 Gen 2x2 20Gbps (Type-C)

Operating system

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB dimension

Mini-ITX

170mmx170mm
