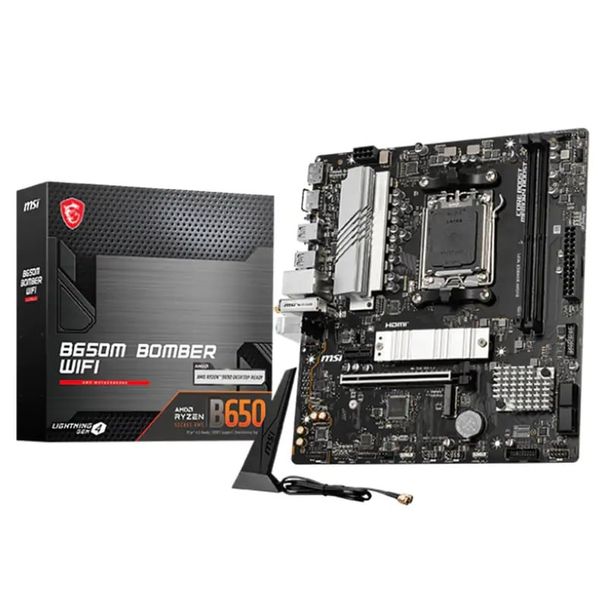

MSI PRO B650M BOMBER WIFI AM5 mATX Motherboard

Model

PRO B650M BOMBER WIFI

Location	Availability
Online (Delivery)	Available from Supplier (2 to 3 Working Days)
Notting Hill (Pickup)	Available from Supplier (2 to 3 Working Days)
Preston (Pickup)	Available from Supplier (2 to 3 Working Days)
West Melbourne (Pickup)	Available from Supplier (2 to 3 Working Days)

$159.00

Details

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)

Core Boost : With premium layout and digital power design to support more cores and provide better performance

Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2

2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

SPECIFICATIONS

Chipset	AMD B650
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot Supports x16/x1 • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front)
LAN	Realtek^® RTL8125BG 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports
Wireless LAN & Bluetooth	Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3** * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s for details.
LED feature	4x EZ Debug LED
Back panel ports	DisplayPort HDMI™ Flash BIOS Button USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio connectors USB 5Gbps Type-C USB 2.0
Operating system	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
Box content	MSI Pro B650M-Bomber WiFi Motherboard 1 x M.2 Clip Wi-Fi Antenna SATA Cable I/O Shield European Union Regulatory Notice Quick Installation Guide
PCB Info	mATX 226mmx243.84mm

More Information

More Information
GTIN	4711377283793
CPU Socket	AM5
Form Factor	mATX
