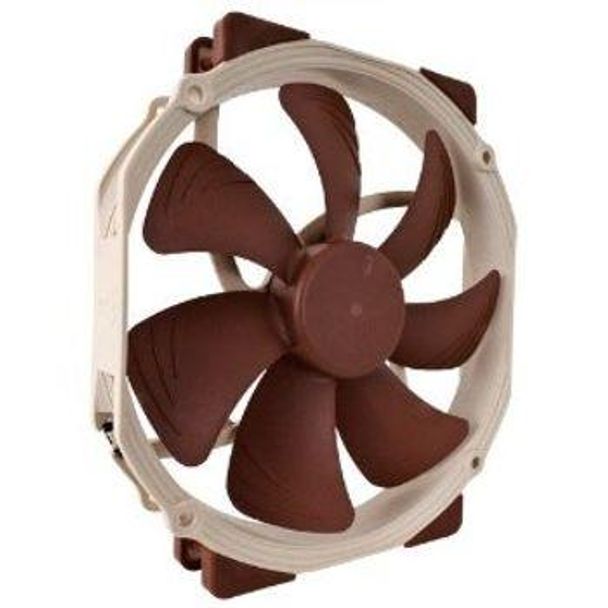

Noctua NF-A15 PWM 140mm Premium Quiet Quality Fan
| Location | Availability |
|---|---|
Online (Delivery) | End of Life |
Notting Hill (Pickup) | End of Life |
Preston (Pickup) | End of Life |
West Melbourne (Pickup) | End of Life |
The NF-A15 is a premium quality quiet 140mm fan with a round frame that complies with Noctua’s AAO (Advanced Acoustic Optimisation) standard. The NF-A15’s frame features 120mm mounting holes (105mm spacing) and has been enlarged to 150mm width in order to provide superior performance on today’s high-end CPU coolers. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 further improves the renowned quiet cooling performance of the award-winning NF-P14. Noctua’s custom designed PWM IC for fully automatic speed control and reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, a Low-Noise Adaptor and 6 years manufacturer’s warranty, the NF-A15 is a premium choice for the highest demands.
|
|
|
Size
140x150x25 mm
|
|
|
Mounting hole spacing
105x105 mm
|
|
|
Connector
4-pin PWM
|
|
|
Bearing
SSO2
|
|
|
Blade Geometry
A-Series with Flow Acceleration Channels
|
|
|
Frame Technology
AAO (Advanced Acoustic Optimisation)
|
|
|
Rotational Speed (+/- 10%)
1200 RPM
|
|
|
Rotational Speed with L.N.A. (+/- 10%)
900 RPM
|
|
|
Min. Rotational Speed (PWM, +/-20%)
300 RPM
|
|
|
Airflow
115,5 m³/h
|
|
|
Airflow with L.N.A.
88,7 m³/h
|
|
|
Acoustical Noise
19,2 dB(A)
|
|
|
Static Pressure
1,51 mm H₂O
|
|
|
Static Pressure with L.N.A.
0,89 mm H₂O
|
|
|
Max. Input Power
0,96 W
|
|
|
Max. Input Current
0,08 A
|
|
|
Voltage
12 V
|
|
|
MTTF
> 150.000 h
|
|
|
Scope of delivery
|
|
|
Warranty
6 years
|
| GTIN | 4716123314806 |
|---|
