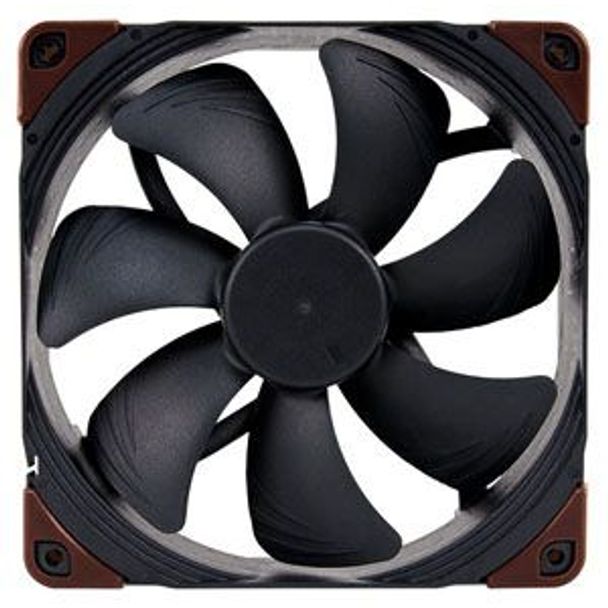

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTTF of over 150.000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.
|
|
Size
140x140x25 mm
|
|
Mounting hole spacing
124,5x124,5 mm
|
|
Connector
4-pin PWM
|
|
Bearing
SSO2
|
|
Blade Geometry
A-Series with Flow Acceleration Channels
|
|
Frame Technology
AAO
|
|
Material
Fibre-glass reinforced polyamide
|
|
Ingress Protection
IP67
|
|
Motor type
Three-phase
|
|
Rotational Speed (+/- 10%)
2000 RPM
|
|
Min. Rotational Speed (PWM, +/-20%)
500 RPM
|
|
Airflow
182,5 m³/h
|
|
Acoustical Noise
31,5 dB(A)
|
|
Static Pressure
4,18 mm H₂O
|
|
Max. Input Power
2,16 W
|
|
Max. Input Current
0,18 A
|
|
Voltage
12 V
|
|
MTTF
> 150.000 h
|
|
Scope of delivery
|
|
Warranty
6 years
|
