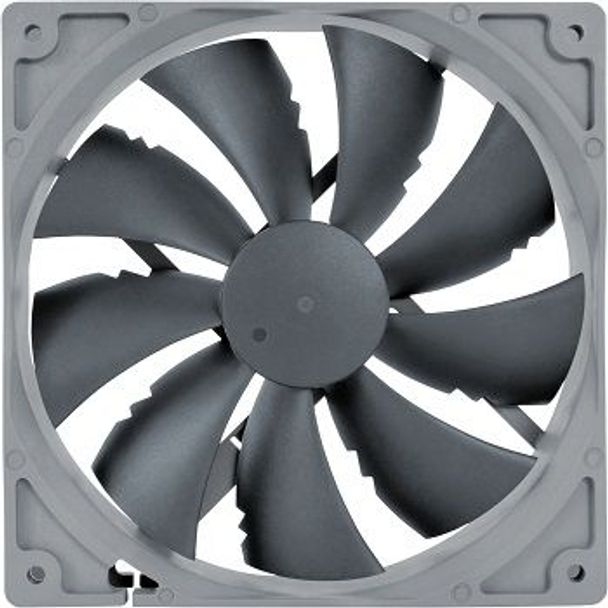

Noctua 140mm P14S Redux Square Frame 1500RPM PWM Fan NF-P14S-REDUX-1500-PWM

Model
NF-P14S-REDUX-1500-PWM
LocationAvailability
Online (Delivery)
Preorder
Notting Hill (Pickup)
Preorder
Preston (Pickup)
Preorder
West Melbourne (Pickup)
Preorder
$34.00
Noctua 140mm NF-P14S Redux Edition Square Frame 1500RPM PWM Fan NF-P14S-REDUX-1500-PWM

Now available in a square frame version called NF-P14s (s for square frame) that lends itself to use in case and radiator cooling, the classic NF-P14 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P14 premium fan. Its industry grade SSO-Bearing bearing, over 150.000 hours MTBF rating and full 6 years manufacturer’s warranty make the NF-P14 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The performance-oriented top speed of the 1500rpm PWM version is ideal for high efficiency case, radiator and CPU cooling as well as other applications that require both extended performance headroom and PWM for automatic speed control.



FAN Specification

Size
140x140x25 mm
Mounting hole spacing
124,5x124,5 mm
Connector
4-pin PWM
Bearing
SSO-Bearing
Rotational Speed (+/- 10%)
1500 RPM
Min. Rotational Speed (PWM, +/-20%)
450 RPM
Airflow
133,7 m³/h
Acoustical Noise
25,8 dB(A)
Static Pressure
1,91 mm H₂O
Max. Input Power
2,4 W
Max. Input Current
0,2 A
Voltage
12 V
MTTF
> 150.000 h
Scope of delivery
  • Fan
  • 4 Fan Screws
Warranty
6 years
