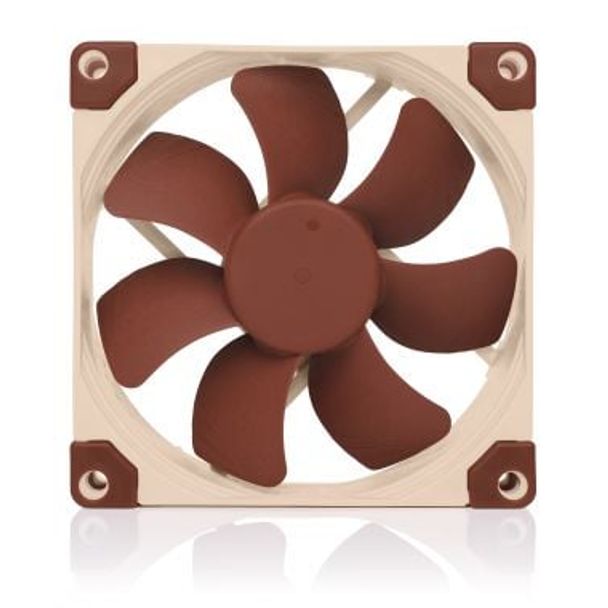

Noctua 92mm NF-A9 FLX 1600RPM Fan
Model
NF-A9 FLX
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
$41.60
Noctua 92mm NF-A9 FLX 1600RPM Fan
The NF-A9 is a highly optimised, premium quality quiet 92mm fan. Featuring Noctua’s AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A9 further improves the renowned quiet cooling performance of the award-winning NF-B9. The FLX version provides 1600/1250/1050rpm speed settings via the supplied Low-Noise Adaptors in order to provide full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
FAN Specification
Size
92x92x25 mm
Mounting hole spacing
82,5x82,5 mm
Connector & pin-configuration
3-pin
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
SSO2
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)
1600 RPM
Rotational speed with L.N.A. (+/- 10%)
1250 RPM
Rotational Speed with U.L.N.A. (+/- 10%)
1050 RPM
Airflow
64,6 m³/h
Airflow with L.N.A.
51,1 m³/h
Airflow with U.L.N.A.
42,9 m³/h
Acoustical noise
17,1 dB(A)
Acoustical noise with L.N.A.
11,6 dB(A)
Acoustical noise with U.L.N.A.
8,4 dB(A)
Static pressure
1,62 mm H₂O
Static pressure with L.N.A.
1,04 mm H₂O
Static pressure with U.L.N.A.
0,71 mm H₂O
Max. input power
0,84 W
Max. input current
0,07 A
Operating voltage
12 V
MTTF
> 150.000 h
Scope of delivery
- Low-Noise Adaptor (L.N.A.)
- Ultra-Low-Noise Adaptor (U.L.N.A.)
- 3:4-Pin Adaptor
- 30cm Extension Cable
- 4 Vibration-Compensators
- 4 Fan Screws
Warranty
6 years
