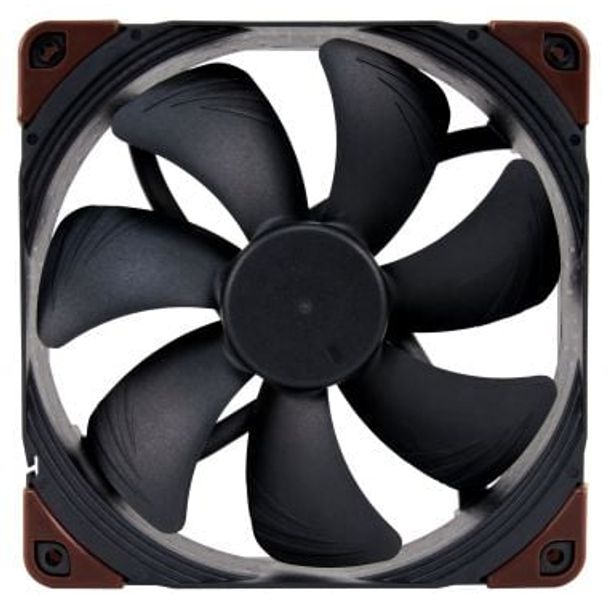

Noctua NF-A14-iPPC-2000 140mm NF-A14 industrialPPC IP52 2000RPM Fan

Model
NF-A14-iPPC-2000
LocationAvailability
Online (Delivery)
In Stock
Notting Hill (Pickup)
In Stock
Preston (Pickup)
Available in 24 Hours
West Melbourne (Pickup)
Available in 24 Hours
$59.00
Noctua NF-A14-iPPC-2000 140mm NF-A14 industrialPPC IP52 2000RPM Fan

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTTF of over 150.000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.



Product Details
Notes and warnings

The industrialPPC models are high-speed fans for industrial applications. As such, they are not as quiet as other Noctua fans and less suited for low-noise PC builds. Unless you specifically require the higher speeds and performance of the industrialPPC versions, we recommend using models of our other product lines (chromax if you prefer black fans) instead.
FAN Specification
Size

140x140x25 mm
Mounting hole spacing

124,5x124,5 mm
Connector & pin-configuration

4-pin PWM
Cable length

40cm
Bearing

SSO2
Blade geometry

A-Series with Flow Acceleration Channels
Frame technology

AAO
Material

Fibre-glass reinforced polyamide
Ingress protection

IP52
Motor type

Three-phase
Rotational speed (+/- 10%)

2000 RPM
Min. rotational speed (PWM, +/-20%)

500 RPM
Airflow

182,5 m³/h
Acoustical noise

31,5 dB(A)
Static pressure

4,18 mm H₂O
Max. input power

2,16 W
Max. input current

0,18 A
Operating voltage

12 V
MTTF

> 150.000 h
Scope of delivery

  • Fan
  • 4 Fan Screws
Warranty

6 years
More Information
GTIN4716123315421
