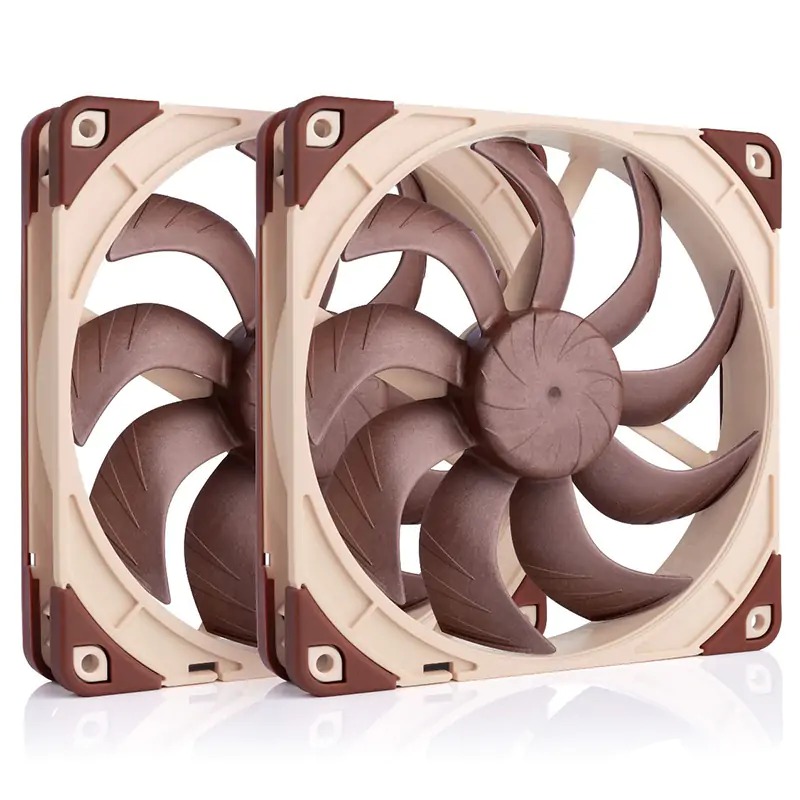

Noctua NF-A14X25 G2 PWM SX2 PWM Fan 2 Pack

Mounting hole spacing

124.5x124.5 mm

Connector & pin-configuration

4-pin PWM

Cable length

20cm + 30cm NA-EC1 extension cable

Bearing

SSO2

Blade geometry

A-Series with Flow Acceleration Channels

Frame technology

AAO (Advanced Acoustic Optimisation)

Material

Sterrox® LCP

Rotational speed (+/- 10%)

1500 RPM

Rotational speed with L.N.A. (+/- 10%)

1250 RPM

Airflow

155.6 m/h

Airflow with L.N.A.

127.1 m/h

Acoustical noise

24.8 dB(A)

Acoustical noise with L.N.A.

19.7 dB(A)

Static pressure

2.56 mm H₂O

Static pressure with L.N.A.

1.3 mm H₂O

Input power (max.)

2.28 W

Max. input current

0.19 A

Operating voltage

12 V

MTTF

> 150,000 h

Scope of delivery

NF-A14x25 G2 PWM PPA

NF-A14x25 G2 PWM PPB

2x NA-RC16 Low-Noise Adaptor (L.N.A.)

NA-YC1 4-pin PWM splitter cable

2x NA-EC1 30cm extension cable

8x NA-AV2 anti-vibration mounts

2x NA-AVG2-LR anti-vibration gasket for water cooling radiators

8x NA-AVP1-LR load-relief anti-vibration pads

Fan screws
