Noctua NF-A20-PWM-CH-BK-S NF A20 PWM chromax.black.swap 200mm NF-A20 PWM Chromax Black Swap 800RPM Fan

Model
NF-A20-PWM-CH-BK-S
LocationAvailability
Online (Delivery)
In Stock
Notting Hill (Pickup)
In Stock
Preston (Pickup)
Available in 24 Hours
West Melbourne (Pickup)
In Stock
$75.00

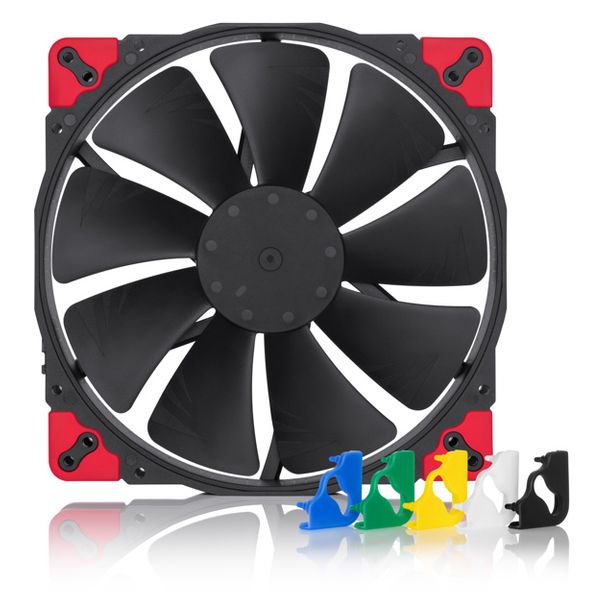

200mm NF-A20 PWM Chromax Black Swap 800RPM Fan

Having received dozens of awards and recommendations from international hardware websites and magazines, the NF-A20 has established itself as a default choice when it comes to premium-quality 200mm fans. The chromax.black.swap edition combines the NF-A20’s signature quiet cooling performance with an attractive all-black design and a bundle of swappable red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. For further customisation, a wide range of accessories such as coloured cables and anti-vibration mounts are available separately. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-A20 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.

FAN Specification

Size
200x200x30 mm
Mounting hole spacing
154x154, 110x180, 170x170 mm
Connector & pin-configuration
4-pin PWM
Cable length
1cm + 30cm NA-EC1 extension cable
Bearing
SSO2
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)
800 RPM
Min. rotational speed (PWM, +/-20%)
350 RPM
Airflow
146,9 m³/h
Acoustical noise
18,1 dB(A)
Static pressure
1,08 mm H₂O
Max. input power
0,96 W
Max. input current
0,08 A
Operating voltage
12 V
Voltage PWM signal
5 V
MTTF
> 150.000 h
Scope of delivery
  • 8x NA-AVP6 chromax.black anti-vibration pads
  • 4x NA-AVP6 chromax.blue anti-vibration pads
  • 4x NA-AVP6 chromax.green anti-vibration pads
  • 4x NA-AVP6 chromax.red anti-vibration pads
  • 4x NA-AVP6 chromax.white anti-vibration pads
  • 4x NA-AVP6 chromax.yellow anti-vibration pads
  • 4x fan screws
Warranty
6 years



More Information
GTIN0841501110450
