Noctua NF-A4x10-PWM 40mm NF-A4x10 PWM 5000RPM Fan
Model
NF-A4x10-PWM
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
$35.00

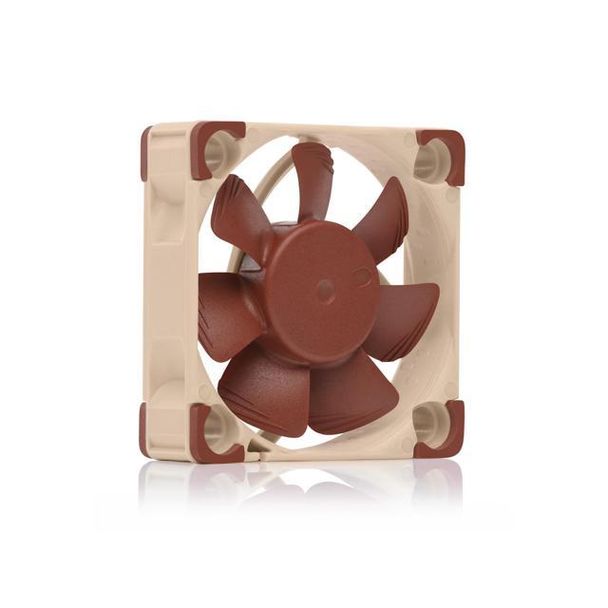

Noctua NF-A4x10-PWM 40mm NF-A4x10 PWM 5000RPM Fan
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A4x10 is an award-winning, premium-quality quiet fan in size 40x10mm. The PWM version sports Noctua’s custom-designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise Adaptor as well as an OmniJoin Adaptor Set for easy connection to proprietary fan headers. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
|
||
|
Size
40x40x10 mm
|
||
|
Mounting hole spacing
32x32 mm
|
||
|
Connector & pin-configuration
4-pin PWM
|
||
|
Cable length
20cm + 30cm NA-EC1 extension cable
|
||
|
Bearing
SSO2
|
||
|
Blade geometry
A-Series with Flow Acceleration Channels
|
||
|
Frame technology
AAO (Advanced Acoustic Optimisation)
|
||
|
Rotational speed (+/- 10%)
5000 RPM
|
||
|
Rotational speed with L.N.A. (+/- 10%)
3700 RPM
|
||
|
Min. rotational speed (PWM, +/-20%)
1000 RPM
|
||
|
Airflow
8,9 m³/h
|
||
|
Airflow with L.N.A.
6,6 m³/h
|
||
|
Acoustical noise
19,6 dB(A)
|
||
|
Acoustical noise with L.N.A.
12,9 dB(A)
|
||
|
Static pressure
1,95 mm H₂O
|
||
|
Static pressure with L.N.A.
1,21 mm H₂O
|
||
|
Max. input power
0,48 W
|
||
|
Max. input current
0,04 A
|
||
|
Operating voltage
12 V
|
||
|
MTTF
> 150.000 h
|
||
|
Scope of delivery
|
||
|
Warranty
6 years
|
| GTIN | 841501110443 |
|---|
