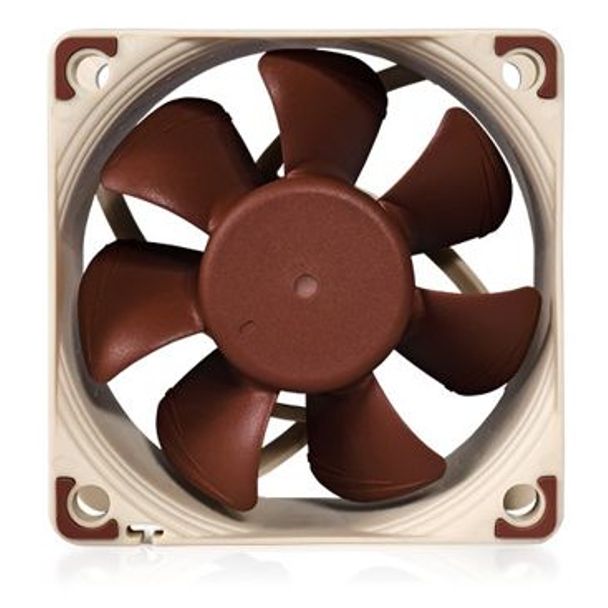

Noctua NF-A6X25 PWM NF-A6x25 60mm PWM 3000RPM Fan

SKU
FAN-NOC-A6X25P
Model
NF-A6X25 PWM
Add to Compare
LocationAvailability
Online (Delivery)
Preorder
Notting Hill (Pickup)
Preorder
Preston (Pickup)
Preorder
West Melbourne (Pickup)
Preorder
$35.00
Noctua NF-A6X25 PWM 60mm Case Fan
Noctua
842431012524
Add to Wish List

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAOframe, the NF-A6x25 is a highly optimised, premium quality quiet fan in 60x25mm size. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 3000 to 2300rpm. Its superb running smoothness, SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.

Details

Flow Acceleration Channels

Flow Acceleration Channels

The NF-A4x10 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

AAO Frame

AAO Frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

Stepped Inlet Design

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.

Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.

Custom-designed PWM IC with SCD

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-A6x25 PWM uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.

Low-Noise Adaptor

Low-Noise Adaptor

The NF-A6x25 PWM is supplied with a (L.N.A.) that reduces the maximum fan speed from 3000 to 2300rpm. The L.N.A. can be used either to run the fan at a fixed speed of 2300rpm or to cap the maximum speed when using automatic PWM control.

Extensive cabling options

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second NF-A6x25 PWM fan to the same PWM fan header for automatic control.

6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A6x25 features an MTBF of more than 150.000 hours rating and comes with a full 6-year manufacturer’s warranty.




FAN Specification

Size
60x60x25 mm
Mounting hole spacing
50x50 mm
Connector
4-Pin PWM
Bearing
SSO2
Blade Geometry
A-Series with Flow Acceleration Channels
Frame Technology
AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%)
3000 RPM
Rotational Speed with L.N.A. (+/- 10%)
2300 RPM
Min. Rotational Speed (PWM, +/-20%)
550 RPM
Airflow
29,2 m³/h
Airflow with L.N.A.
22,6 m³/h
Acoustical Noise
19,3 dB(A)
Acoustical Noise with L.N.A.
13,7 dB(A)
Static Pressure
2,18 mm H₂O
Static Pressure with L.N.A.
1,29 mm H₂O
Max. Input Power
0,96 W
Max. Input Current
0,08 A
Voltage
12 V
MTBF
> 150.000 h
Scope of Delivery
  • Low-Noise Adaptor (L.N.A.)
  • 4-Pin Y-Cable
  • 30cm Extension Cable
  • 4 Vibration-Compensators
  • 4 Fan Screws
Warranty
6 years
