Noctua NF-A8-PWM-CH-BK-S 80mm NF-A8 PWM Chromax Black Fan

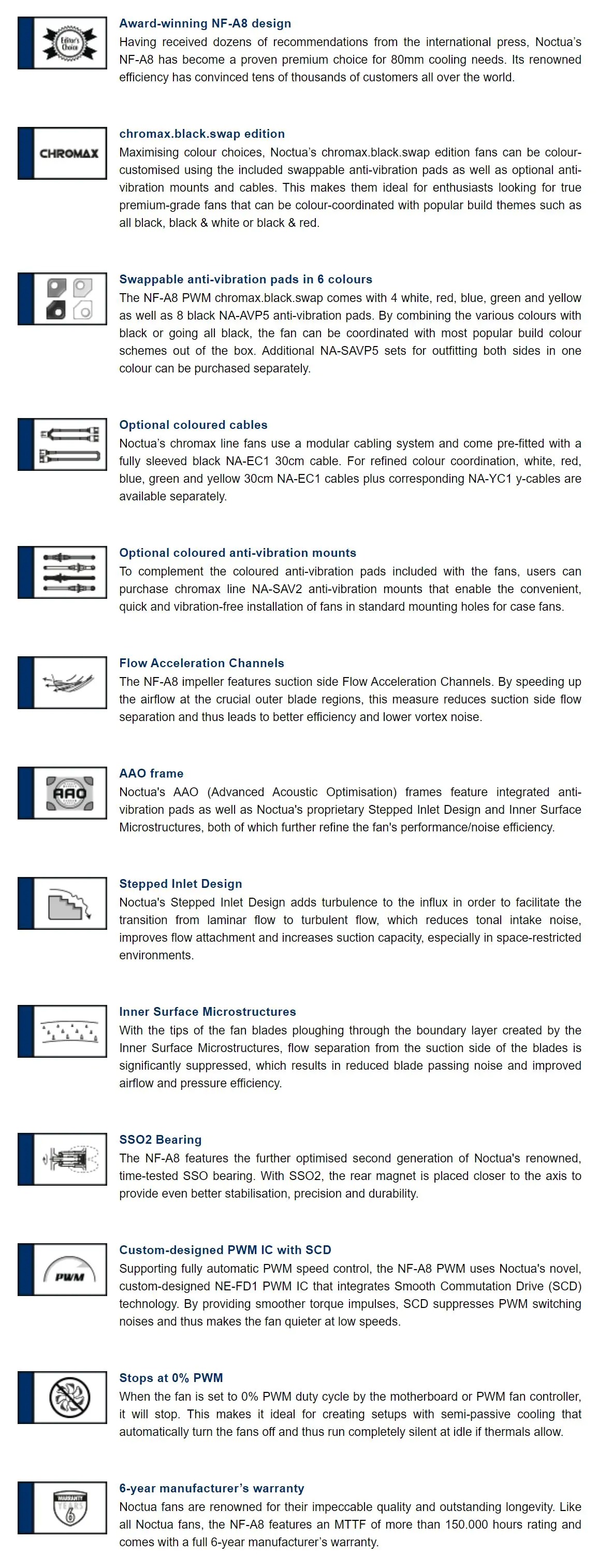

Having received dozens of awards and recommendations from international hardware websites and magazines, the NF-A8 has established itself as a default choice when it comes to premium-quality 80mm fans. The chromax.black.swap edition combines the NF-A8’s signature quiet cooling performance with an attractive all-black design and a bundle of swappable red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. For further customisation, a wide range of accessories such as coloured cables and anti-vibration mounts are available separately. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-A8 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.

SPECIFICATIONS

Size : 80x80x25 mm

Mounting hole spacing: 71,5x71,5 mm

Connector & pin-configuration: 4-pin PWM

Cable length: 1cm + 30cm NA-EC1 extension cable

Bearing: SSO2

Blade geometry: A-Series with Flow Acceleration Channels

Frame technology: AAO (Advanced Acoustic Optimisation)

Rotational speed (+/- 10%): 2200 RPM

Min. rotational speed (PWM, +/-20%): 450 RPM

Airflow: 55,5 m/h

Acoustical noise: 17,7 dB(A)

Static pressure: 2,37 mm H?O

Max. input power: 0,96 W

Max. input current: 0,08 A

Operating voltage: 12 V

MTTF:  > 150.000 h

Scope of delivery:

8x NA-AVP5 chromax.black anti-vibration pads

4x NA-AVP5 chromax.blue anti-vibration pads

4x NA-AVP5 chromax.green anti-vibration pads

4x NA-AVP5 chromax.red anti-vibration pads

4x NA-AVP5 chromax.white anti-vibration pads

4x NA-AVP5 chromax.yellow anti-vibration pads

4x fan screws
