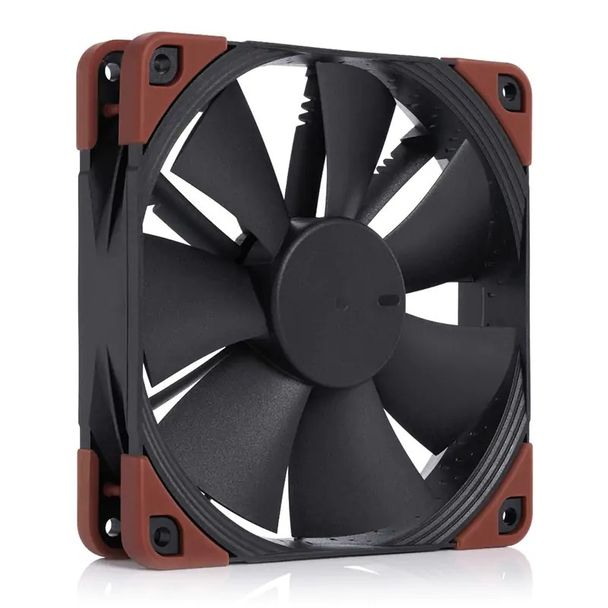

Noctua NF-F12-24-3-SP-IP67-PWM NF-F12 120mm Industrial PPC IP67 3000RPM 4-Pin PWM Fan

Size

120x120x25 mm

Mounting hole spacing

105x105 mm

Connector & pin-configuration

4-pin PWM

Cable length

40cm

Bearing

SSO2

Blade geometry

Heptaperf™

Frame technology

FocusedFlow™

Material

Fibre-glass reinforced polyamide

Ingress protection

IP67

Motor type

Single-phase

Rotational speed (+/- 10%)

3000 RPM

Min. rotational speed @ 20% PWM (+/-20%)

750 RPM

Rotational speed @ 12V (+/- 10%)

1600 RPM

Airflow

186,7 m/h

Acoustical noise

43,5 dB(A)

Static pressure

7,63 mm H₂O

Input power (typical)

3,33 W

Input power (max.)

4,32 W

Input current (typical)

0,14 A

Max. input current

0,18 A

Operating voltage

24 V

Voltage PWM signal

5 V

MTTF

> 150.000 h

Scope of delivery

Fan

4 Fan Screws
