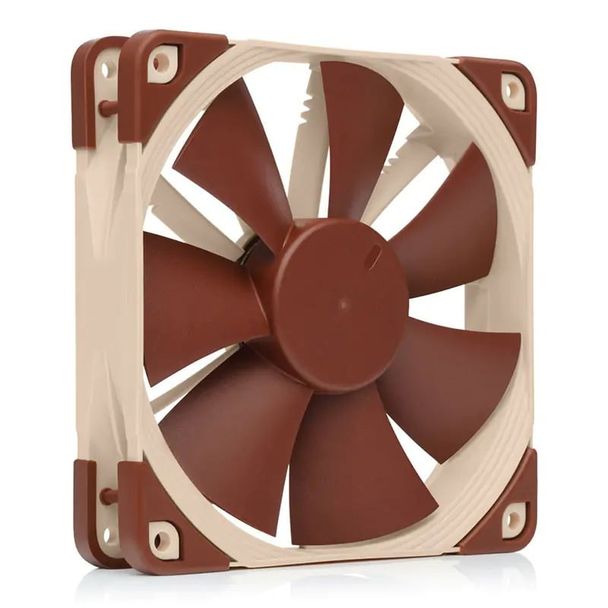

Noctua NF-F12-5V PWM 120mm Fan

Size

120x120x25 mm

Mounting hole spacing

105x105 mm

Connector & pin-configuration

4-pin PWM

Bearing

SSO2

Blade geometry

Heptaperf™

Frame technology

Focused Flow™

Rotational speed (+/- 10%)

1500 RPM

Min. rotational speed @ 20% PWM (+/-20%)

300 RPM

Airflow

93,4 m/h

Acoustical noise

22,4 dB(A)

Static pressure

2,61 mm H₂O

Input power (typical)

0,65 W

Input power (max.)

0,75 W

Input current (typical)

0,13 A

Max. input current

0,15 A

Operating voltage

5 V

MTTF

> 150.000 h

Scope of delivery

30cm extension cable

NA-AV1 anti-vibration mounts

USB power adaptor cable

OmniJoin adaptor set

Fan screws

Notes

Being a 5V fan, the NF-F12 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.
