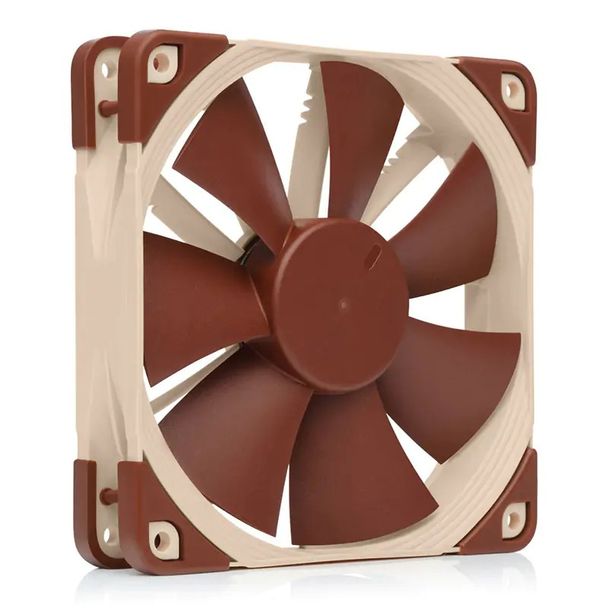

Noctua NF-F12-5V-PWM 120mm PWM Premium Quality Computer Fan
Model
NF-F12-5V-PWM
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
$49.00
SPECIFICATIONS
|
Size |
120x120x25 mm |
|
Mounting hole spacing |
105x105 mm |
|
Connector & pin-configuration |
4-pin PWM |
|
Bearing |
SSO2 |
|
Blade geometry |
Heptaperf™ |
|
Frame technology |
Focused Flow™ |
|
Rotational speed (+/- 10%) |
1500 RPM |
|
Min. rotational speed @ 20% PWM (+/-20%) |
300 RPM |
|
Airflow |
93,4 m/h |
|
Acoustical noise |
22,4 dB(A) |
|
Static pressure |
2,61 mm H₂O |
|
Input power (typical) |
0,65 W |
|
Input power (max.) |
0,75 W |
|
Input current (typical) |
0,13 A |
|
Max. input current |
0,15 A |
|
Operating voltage |
5 V |
|
MTTF |
> 150.000 h |
|
Scope of delivery |
30cm extension cable NA-AV1 anti-vibration mounts USB power adaptor cable OmniJoin adaptor set Fan screws |
|
Notes |
Being a 5V fan, the NF-F12 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers. |
| GTIN | 841501110276 |
|---|
