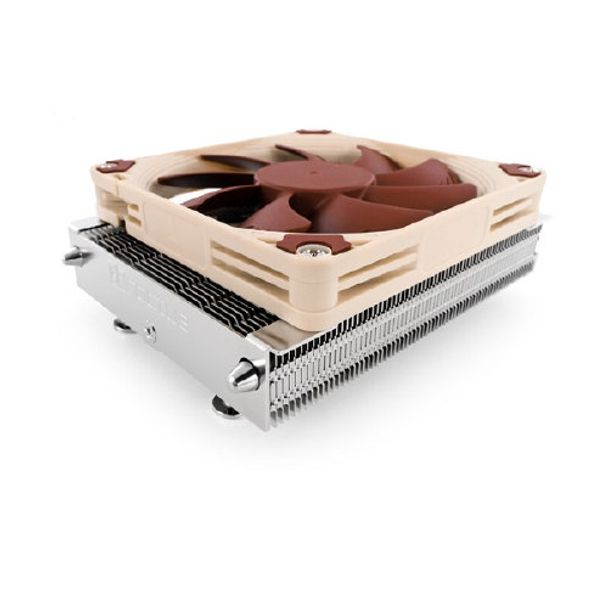

Noctua NH-L9a-AM4 Low Profile AM4 CPU Cooler

Model
NH-L9a-AM4
LocationAvailability
Online (Delivery)
Preorder
Notting Hill (Pickup)
Preorder
Preston (Pickup)
Preorder
West Melbourne (Pickup)
Preorder
$90.00

Noctua NH-L9a-AM4 NH-L9a-AM4 Low Profile AM4 CPU Cooler Is Not Compatible with AM5 CPU

The NH-L9a-AM4 is the latest, AM4-specific revision of Noctua’s award-winning NH-L9a low-profile CPU cooler for AMD Ryzen-based HTPCs and Small Form Factor (SFF) systems. At a height of only 37mm, the NH-L9a is ideal for extremely slim cases and, due to its small footprint, it provides 100% RAM and PCIe compatibility as well as easy access to near-socket connectors even on tightly packed mini-ITX motherboards. The custom-designed SecuFirm2™ mounting system for the AM4 socket makes installation child’s play and, thanks to the highly optimised NF-A9x14 92mm fan that supports fully automatic speed control via PWM, the NH-L9a-AM4 runs remarkably quietly. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9a-AM4 combines everything users have come to expect from Noctua’s larger coolers into a super-compact, premium-quality package for ITX and HTPC builds with Ryzen CPUs or APUs.
  The NH-L9a-AM4 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and is only recommended for CPUs/APUs with up to 95W TDP (Thermal Design Power). Please consult our TDP guidelines to find out whether the NH-L9a-AM4 is recommended for your CPU/APU.
NH-L9a-AM4

General

Notes and warnings
The NH-L9a-AM4 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and is only recommended for CPUs/APUs with up to 95W TDP (Thermal Design Power). Please consult our TDP guidelines to find out whether the NH-L9a-AM4 is recommended for your CPU/APU.

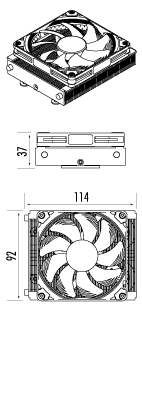

Cooler Specification

Socket compatibility
AMD AM4
Height (without fan)
23 mm
Width (without fan)
114 mm
Depth (without fan)
92 mm
Height (with fan)
37 mm
Width (with fan)
114 mm
Depth (with fan)
92 mm
Weight (without fan)
390 g
Weight (with fan/s)
465 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP
see TDP guide
Fan compatibility
92x92x14mm, 92x92x25mm
Scope of delivery
  • NF-A9x14 PWM premium fan
  • Low-Noise Adaptor (L.N.A.)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ AM4 mounting kit
  • Screws for 92x92x25mm fans
  • Noctua metal case-badge
Warranty
6 Years

FAN Specification

Model
Noctua NF-A9x14 PWM
Bearing
SSO2
Max. Rotational Speed (+/- 10%)
2500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%)
1800 RPM
Min. Rotational Speed (PWM, +/-20%)
600 RPM
Max. Airflow
57,5 m³/h
Max. Airflow with L.N.A.
40,8 m³/h
Max. Acoustical Noise
23,6 dB(A)
Max. Acoustical Noise with L.N.A.
14,8 dB(A)
Input Power
2,52 W
Voltage Range
12 V
MTTF
> 150.000 h
More Information
GTIN841501100093
