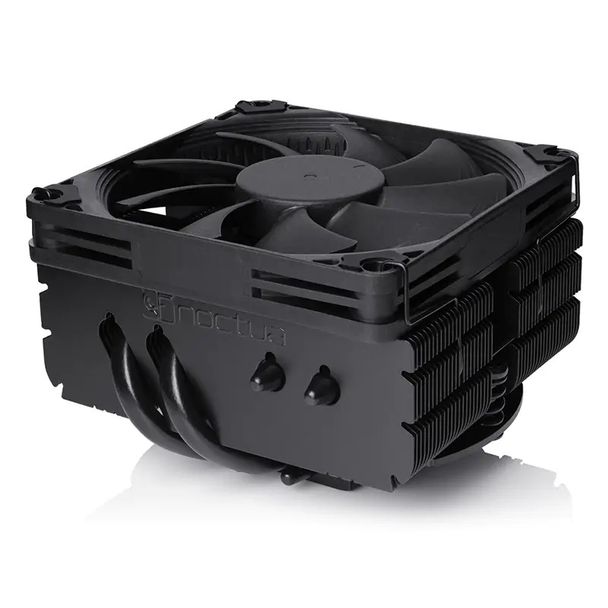

Noctua NH-L9X65-CH-BK NH-L9x65 chromax.black Intel AMD CPU Cooler
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
|
SPECIFICATIONS |
|
|
Socket compatibility |
Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 |
|
Height (without fan) |
51 mm |
|
Width (without fan) |
95 mm |
|
Depth (without fan) |
95 mm |
|
Height (with fan) |
65 mm |
|
Width (with fan) |
95 mm |
|
Depth (with fan) |
95 mm |
|
Weight (with fan) |
413 g |
|
Material |
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
|
NSPR |
67 |
|
Max. TDP |
see NSPR |
|
Fan compatibility |
92x92x14, 92x92x25 |
|
Scope of delivery |
Black NH-L9x65 heatsink NF-A9x14 HS-PWM chromax.black premium fan NA-RC7 Low-Noise Adaptor (L.N.A) NT-H1 high-grade thermal compound Black SecuFirm2™ mounting kit Noctua Metal Case-Badge |
|
FAN SPECIFICATION |
|
|
Model |
Noctua NF-A9x14 HS-PWM chromax.black |
|
Bearing |
SSO2 |
|
Max. rotational speed (+/- 10%) |
2500 RPM |
|
Max. rotational speed with L.N.A. (+/- 10%) |
1800 RPM |
|
Min. rotational speed @ 20% PWM (+/-20%) |
600 RPM |
|
Max. airflow |
57,5 m/h |
|
Max. airflow with L.N.A. |
40,8 m/h |
|
Max. acoustical noise |
23,6 dB(A) |
|
Max. acoustical noise with L.N.A. |
14,8 dB(A) |
|
Airflow |
57.5 m/h |
|
Airflow with L.N.A. |
40.8 m/h |
|
Acoustical noise |
23.6 dB(A) |
|
Input power (max.) |
2,52 W |
|
Voltage range |
12 V |
|
MTTF |
> 150.000 h |
| GTIN | 841501100499 |
|---|
