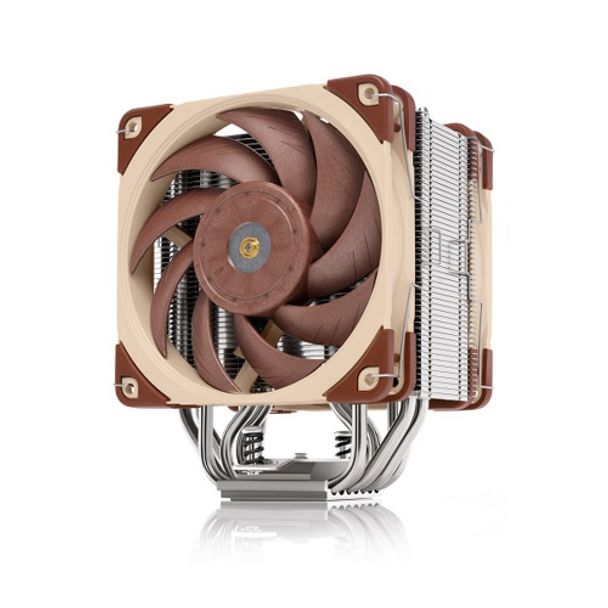

Noctua NH-U12A NH-U12A Multi Socket CPU Cooler
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
The NH-U12A is the latest, 5th generation of Noctua’s award-winning NH-U12 series of 120mm size premium-quality quiet CPU coolers. Conceived to push the envelope of the 120mm form factor, it combines two of Noctua’s flagship model NF-A12x25 PWM 120mm fans with a completely redesigned heatsink featuring 7 heatpipes and an increased fin surface area for superior heat dissipation. This way, the NH-U12A can rival the performance of many 140mm size coolers while offering 120mm class case and PCIe compatibility. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U12A is a deluxe choice that combines top-tier performance with excellent compatibility and outstanding quietness of operation.
|
|
|
Socket compatibility
Intel LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA2066 and AMD AM4, AM3(+), AM2(+), FM1, FM2(+)
|
|
|
Height (without fan)
158 mm
|
|
|
Width (without fan)
125 mm
|
|
|
Depth (without fan)
58 mm
|
|
|
Weight (without fan)
760 g
|
|
|
Height (with fan)
158 mm
|
|
|
Width (with fan)
125 mm
|
|
|
Depth (with fan)
112 mm
|
|
|
Weight (with fan)
1220 g
|
|
|
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
|
|
|
Max. TDP
see CPU compatibility list
|
|
|
Fan compatibility
120x120x25
|
|
|
Scope of delivery
|
|
|
Warranty
6 Years
|
|
||
|
Model
Noctua NF-A12x25 PWM
|
||
|
Bearing
SSO2
|
||
|
Max. rotational speed (+/- 10%)
2000 RPM
|
||
|
Max. rotational speed with L.N.A. (+/- 10%)
1700 RPM
|
||
|
Min. rotational speed (PWM, +/-20%)
450 RPM
|
||
|
Max. airflow
102,1 m³/h
|
||
|
Max. airflow with L.N.A.
84,5 m³/h
|
||
|
Max. acoustical noise
22,6 dB(A)
|
||
|
Max. acoustical noise with L.N.A.
18,8 dB(A)
|
||
|
Voltage range
12 V
|
||
|
MTTF
> 150.000 h
|
| GTIN | 9010018000160 |
|---|
