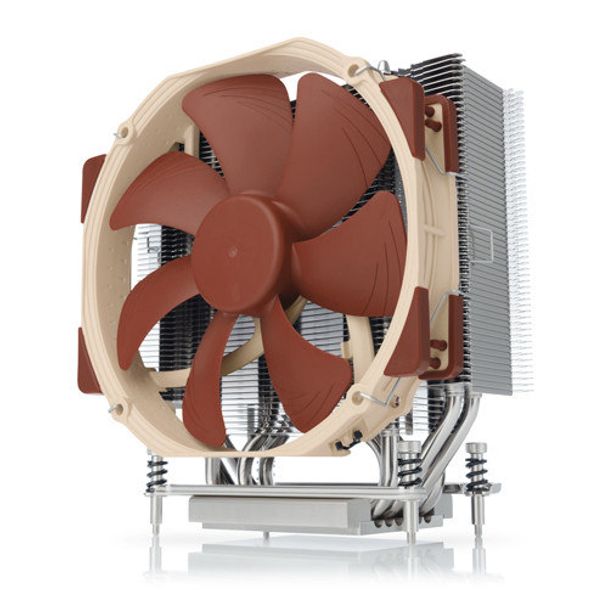

Noctua NH-U14S-TR4-SP3 NH-U14S AMD Threadripper TR4 CPU Cooler
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
Continuing the legacy of Noctua’s classic NH-U-series, which has received more than a thousand awards and recommendations from international hardware websites and magazines, the NH-U14S has become a benchmark for high-end 140mm single tower coolers. The TR4-SP3 version is a tailored custom model for AMD’s TR4/SP3 platform (Ryzen Threadripper / Epyc) and features a larger contact surface as well as the latest SecuFirm2™ mounting system for socket TR4/SP3. Topped off with the renowned quiet NF-A15 PWM 140mm fan, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U14S TR4-SP3 forms a complete premium-quality solution that combines maximum performance and superb acoustics for enthusiast-grade TR4/SP3 systems.
|
|
|
Notes and warnings
Please note that the NH-U14S TR4-SP3 is a dedicated version for the AMD TR4/SP3 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.
|
|
||
|
Socket compatibility
AMD TR4 & SP3
|
||
|
Height (without fan)
165 mm
|
||
|
Width (without fan)
150 mm
|
||
|
Depth (without fan)
52 mm
|
||
|
Height (with fan)
165 mm
|
||
|
Width (with fan)
150 mm
|
||
|
Depth (with fan)
78 mm
|
||
|
Weight (without fan)
865 g
|
||
|
Weight (with fan/s)
1030 g
|
||
|
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
|
||
|
Max. TDP
see TDP guide
|
||
|
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
|
||
|
Scope of delivery
|
||
|
Warranty
6 Years
|
|
||
|
Model
Noctua NF-A15 PWM
|
||
|
Bearing
SSO2
|
||
|
Max. Rotational Speed (+/- 10%)
1500 RPM
|
||
|
Max. Rotational Speed with L.N.A. (+/- 10%)
1200 RPM
|
||
|
Min. Rotational Speed (PWM, +/-20%)
300 RPM
|
||
|
Max. Airflow
140,2 m³/h
|
||
|
Max. Airflow with L.N.A.
115,5 m³/h
|
||
|
Max. Acoustical Noise
24,6 dB(A)
|
||
|
Max. Acoustical Noise with L.N.A.
19,2 dB(A)
|
||
|
Input Power
1,56 W
|
||
|
Voltage Range
12 V
|
||
|
MTTF
> 150.000 h
|
| GTIN | 841501100109 |
|---|
