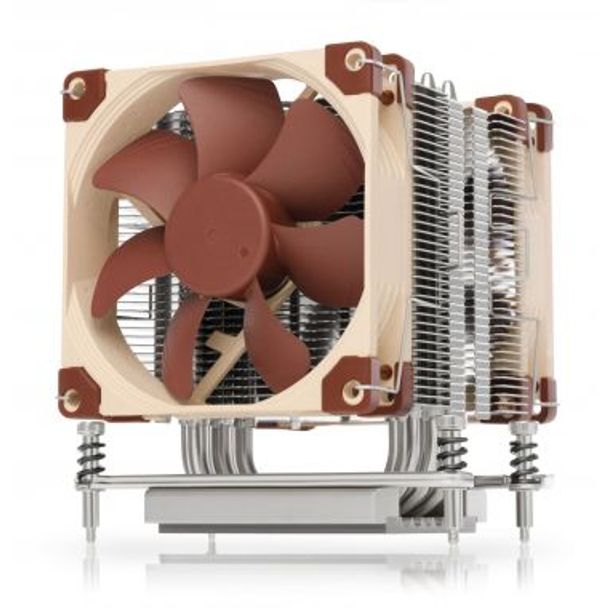

Noctua NH-U9 TR4-SP3 92mm AMD TR4/SP3 CPU Cooler
Model
NH-U9 TR4-SP3
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
$179.00
Noctua NH-U9 TR4-SP3 92mm AMD TR4/SP3 CPU Cooler
Having received more than 300 awards and recommendations from international hardware websites and magazines, Noctua’s NH-U9 line has become a benchmark for compact 92mm single tower coolers. The TR4-SP3 version is a tailored custom model for AMD’s sTRX4/TR4/SP3 platform (Ryzen Threadripper / Epyc) and features a larger contact surface as well as the latest SecuFirm2™ mounting system for socket sTRX4/TR4/SP3. Topped off with two of the renowned quiet NF-A9 PWM 92mm fans in a push/pull dual fan configuration, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U9 TR4-SP3 forms a highly compact, premium-quality solution that combines outstanding performance, superb acoustics and excellent compatibility for space-restricted sTRX4/TR4/SP3 systems.
Please note that the NH-U9 TR4-SP3 is a dedicated version for the AMD sTRX4/TR4/SP3 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.
Product Details
Notes and warnings
Please note that the NH-U9 TR4-SP3 is a dedicated version for the AMD sTRX4/TR4/SP3 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.
Cooler Specification
Socket compatibility
AMD sTRX4, TR4, SP3
Height (without fan)
125 mm
Width (without fan)
95 mm
Depth (without fan)
71 mm
Weight (without fan)
660 g
Height (with fan)
125 mm
Width (with fan)
95 mm
Depth (with fan)
120 mm
Weight (with fan)
895 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP
see CPU compatibility list
Fan compatibility
2x 92x92x25mm
Scope of delivery
- 2x NF-A9 PWM premium fan
- 2x Low-Noise Adaptor (L.N.A.)
- Y-split cable
- NT-H1 high-grade thermal compound
- SecuFirm2™ mounting kit for sTRX4/TR4/SP3
- Noctua metal case-badge
Warranty
6 Years
FAN Specification
Model
Noctua NF-A9 PWM
Bearing
SSO2
Max. rotational speed (+/- 10%)
2000 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1550 RPM
Min. rotational speed (PWM, +/-20%)
400 RPM
Max. airflow
78,9 m³/h
Max. airflow with L.N.A.
62,6 m³/h
Max. acoustical noise
22,8 dB(A)
Max. acoustical noise with L.N.A.
16,3 dB(A)
Input power
1,2 W
Voltage range
12 V
MTTF
> 150.000 h
| GTIN | 9010018000108 |
|---|
