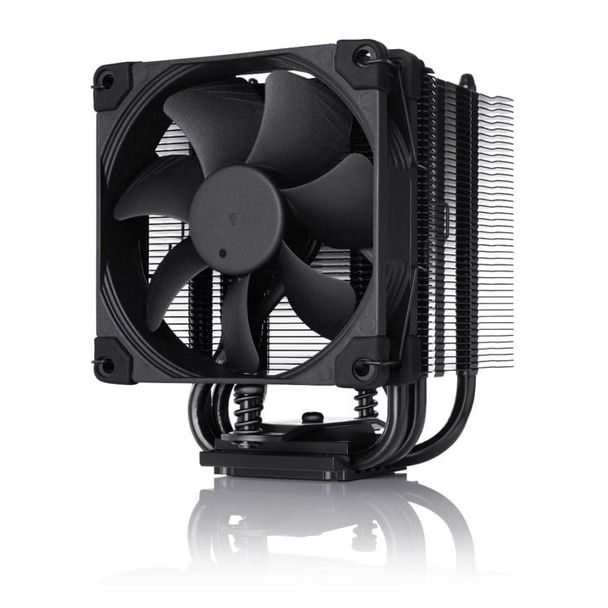

Noctua NH-U9S-CH-BK NH-U9S Chromax Black Multi Socket CPU Cooler

Model
NH-U9S-CH-BK
LocationAvailability
Online (Delivery)
Preorder
Notting Hill (Pickup)
Preorder
Preston (Pickup)
Preorder
West Melbourne (Pickup)
Preorder
$129.00
NH-U9S Chromax Black Multi Socket CPU Cooler

The NH-U9S chromax.black is an all-black version of Noctua’s award-winning NH-U9S premium-quality quiet CPU cooler. Thanks to the same proven compact 92mm tower heatsink design and NF-A9 PWM fan, it stays true to the NH-U9S’s successful formula of fusing strong cooling performance with excellent quietness of operation and outstanding RAM, case and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2™ multi-socket mounting system, Noctua’s enthusiast-grade NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U9S chromax.black is a premium choice for customers who seek a compact, highly compatible 92mm heatsink that looks just as great as it cools.

Cooler Specification
Socket compatibility

Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200 LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4
Height (without fan)

125 mm
Width (without fan)

95 mm
Depth (without fan)

68 mm
Height (with fan)

125 mm
Width (with fan)

95 mm
Depth (with fan)

95 mm
Weight (with fan)

618 g
Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP

see CPU compatibility list
Fan compatibility

92x92x25
Scope of delivery

  • Black NH-U9S heatsink
  • NF-A9 PWM chromax.black premium fan
  • NA-RC7 Low-Noise Adaptor (L.N.A)
  • NT-H1 high-grade thermal compound
  • Black SecuFirm2™ mounting kit
  • Black fan-clips for second NF-A9
  • Noctua Metal Case-Badge
Warranty

6 Years
FAN Specification
Model

Noctua NF-A9 PWM chromax.black
Bearing

SSO2
Max. rotational speed (+/- 10%)

2000 RPM
Max. rotational speed with L.N.A. (+/- 10%)

1550 RPM
Min. rotational speed (PWM, +/-20%)

400 RPM
Max. airflow

78,9 m³/h
Max. airflow with L.N.A.

62,6 m³/h
Max. acoustical noise

22,8 dB(A)
Max. acoustical noise with L.N.A.

16,3 dB(A)
Input power

1,2 W
Voltage range

12 V
MTTF

> 150.000 h
NH-D15
