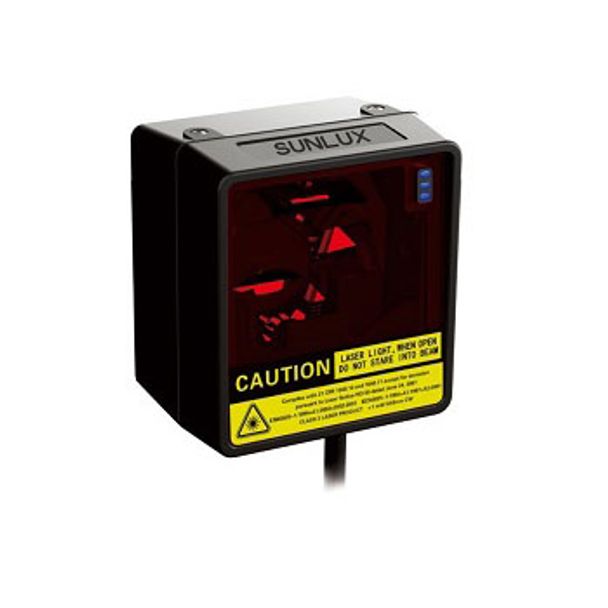

Omni-directional Barcode Scanner XL-200

SKU
POS-SCA-XL200
Model
XL-200
Add to Compare
LocationAvailability
Online (Delivery)
In Stock
Notting Hill (Pickup)
In Stock
Preston (Pickup)
In Stock
West Melbourne (Pickup)
In Stock
$139.00
Omni-directional Barcode Scanner Module XL-200
Generic
Add to Wish List

Product descirption

  • Small body, easy to be embed
  • Support both omnidirectional and single-line scan
  • 20 laser scan lines in 5 directions
  • Scan rate up to 1500 scan per second
  • 75 scans per second on single-line scan mode
  • Self-developed decoder chip & hardware decode technology
  • Suit for Keyboard, RS-232, USB interface port
  • Powerful performance on decode capability
Performance parameter

light source

650 nm visible laser diode

Depth  of  Field

0 - 200 mm for 0.33mm UPC/EAN 100%

Scan  Patten

5  directions  of  scan  field

Scan  Rate

1, 500  scans  per  second  (omnidirectional)  , 75 scans  per  second  (single-line)

Number  of  scan  line

20

Minimum  Bar  Width

5mil@PCS90%

Print  Contrast

30% @ UPC/EAN 100%

Indicators  (LED)

Two  color  LED  (blue& red  )

Beeper  Operation

Programmable  tone&   volume

System  Interfaces

Keyboard  wedge,   RS-232,   USB.   Wand  emulation

Physical parameter

Height

156 mm

Length

80/105 mm

Width

86/100 mm

Weight

300g

Cable

Standard  2.0m  straight

Power parameter

Input  Voltage

5 VDC± 10%

Power  Consumption

1.0watts

Operating  Current

200  m  A  typical

Pegulatory parameter

Laser  Class

CDRH class II; IEC 60825-1 class 1

EMC

CE & FCC DOC compliance

Environmental parameter

Operating  Temperature

0° C 40° C (32° F - 104° F)

Storage  Temperature

-20° C 60° C (-4° F - 140° F)

Humidity

5%-95%  RH(non-dewing  allowed)

Ambient  Light  injection

Up  to  4, 500Lux(  fluorescence)

Shock

Designed  to  withstand  1.0M  drop

Decoding capability

1D Barcodes

UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8& JAN 13, ISBN/ISSN, EAN, Code 39, Code 39 with full ASCII, Code 93, Code 128, Codabar (NM7), trioptic Code 39, MSI/Plessy, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, China Postal Code, Code 32

Options

Industrial 2 of 5, Standard 2 of 5, Discrete 2 of 5, Matrix 2 of 5, Code 11, UPC/EAN RSS, RSS ariants
