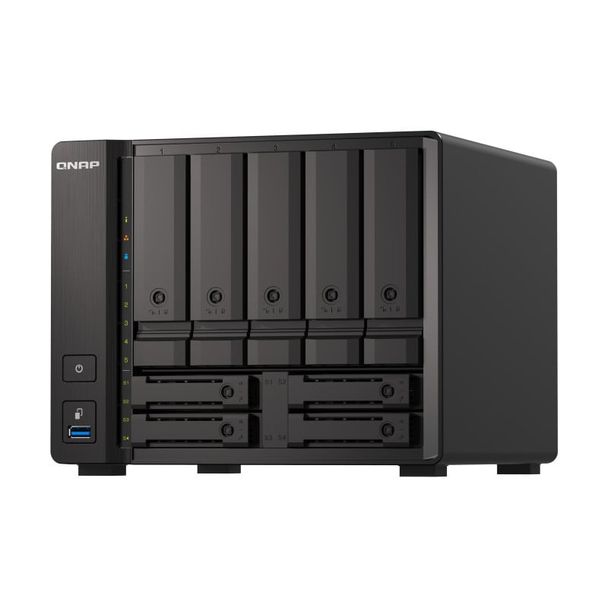

Qnap TS-H973AX-32G,9 BAY NAS(NO DISK),Ryzen V1000,32GB,2.5GbE(2),10GbE (1),3YR WTY
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
Featuring an AMD Ryzen™ V1000 series V1500B quad-core processor and 10GbE/2.5GbE connectivity, the 9-bay TS-h973AX packs a high-capacity hybrid storage infrastructure into a compact physical footprint. With five 3.5-inch SATA 6Gbps drive bays, two 2.5-inch U.2 NVMe SSD slots (Slot 1 & 2 support both U.2 NVMe and SATA SSDs ), and two 2.5-inch SATA 6Gbps SSD slots, the TS-h973AX can benefit from SSD caching to boost IOPS-intensive applications. With the ZFS-based QuTS hero operating system, the TS-h973AX ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync to satisfy mission-critical file servers, virtualization servers, collaborative video editing, and efficient data backup and recovery with business-class performance, job reliability, and lower overall cost.
| CPU | AMD Ryzen™ Embedded V1500B quad-core eight threads 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | v |
| Encryption Engine | v (AES-NI) |
| System Memory | 32 GB SO-DIMM DDR4 (2 x 16 GB) |
| Maximum Memory | 32 GB (2 x 16 GB) |
| Memory Slot | 2 x SO-DIMM DDR4
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 5 x 3.5-inch + 4 x 2.5-inch
The system is shipped without HDD/SSD.
For the HDD/SSD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch U.2 NVMe PCIe Gen3 x4 solid state drives (2.5-inch Bay #1 & #2) * 2.5-inch bay #1 & #2 support either U.2 NVMe SSDs or SATA 6Gb/s SSDs.
** U.2 NVMe solid-state drives can only be installed in 2.5-inch bay numbers 1 and 2. Installing these drives in other bays will damage the drive connectors. |
| Hot-swappable | v |
| SSD Cache Acceleration Support | v |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via the QNA-UC5G1T USB to 5GbE network adapter |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| Jumbo Frame | v |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 3 x Type-A USB 3.2 Gen 2 |
| Form Factor | Tower |
| LED Indicators | HDD 1-5, SSD 1-4, Power/Status, LAN, USB |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 182.65 × 224.6 × 224.1 mm |
| Weight (Net) | 3.52 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | External, 120 W, AC 100 to 240 V |
| Fan | 1 x 140mm, 12VDC |
| Sound Level | 22.9 db(A) |
| System Warning | Buzzer |
| Kensington Security Slot | v |
| GTIN | 4713213518663 |
|---|
