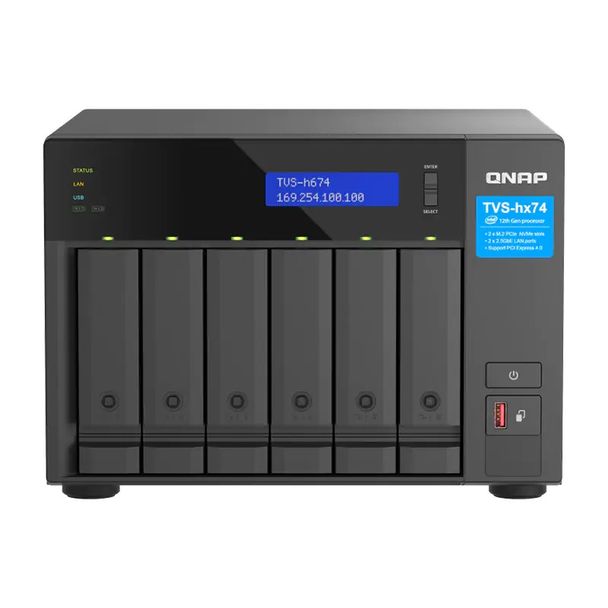

QNAP TVS-H674-I3-16G 6-bay Tower NAS i3-12100 16GB RAM

CPU

Intel® Core™ i3-12100 4-core/8-thread Processor, burst up to 4.3 GHz

CPU Architecture

64-bit x86

Graphic Processors

Intel® UHD Graphics 730

Floating Point Unit

✓

Encryption Engine

✓ (AES-NI)

Hardware-accelerated Transcoding

✓

System Memory

16 GB SODIMM DDR4 (1 x 16 GB)

Maximum Memory

64 GB ( 2 x 32 GB)

Memory Slot

2 x SODIMM DDR4

Flash Memory

5GB (Dual boot OS protection)

Drive Bay

6 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Hot-swappable

✓

M.2 Slot

2 x M.2 2280 PCIe Gen 4 x4 slots

SSD Cache Acceleration Support

✓

GPU pass-through

✓

2.5 Gigabit Ethernet Port (2.5G/1G/100M)

2 (2.5G/1G/100M/10M)

Wake on LAN (WOL)

✓

Jumbo Frame

✓

PCIe Slot

2
Slot 1: PCIe Gen 4 x16
Slot 2: PCIe Gen 4 x4

Card dimensions for PCIe slot 1~Slot 2：185 x 111.15 x 18.76 mm / 7.28 x 4.38 x   0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used.

USB 3.2 Gen 2 (10Gbps) Port

1 x Type-C USB 3.2 Gen 2 10Gbps
2 x Type-A USB 3.2 Gen 2 10Gbps

HDMI Output

1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz)

Form Factor

Tower

LED Indicators

HDD 1-6, Status, LAN, USB port, M.2 port

LCD Display/ Button

✓

Buttons

Power, Reset, USB Copy

Dimensions (HxWxD)

188.2 × 264.3 × 280.8 mm

Weight (Net)

6.32 kg

Weight (Gross)

7.89 kg

Operating Temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

250W, 100-240V

Power Consumption: HDD Sleep Mode

39.911 W

Power Consumption: Operating Mode, Typical

79.363 W

Tested fully populated with WD10EFRX hard   drives.

Fan

System fan: 2 x 92mm, 12VDC
  CPU fan: 1 x 60mm, 12VDC

System Warning

Buzzer

Kensington Security Slot

✓

Max. Number of Concurrent Connections (CIFS)

- with Max. Memory

2500
