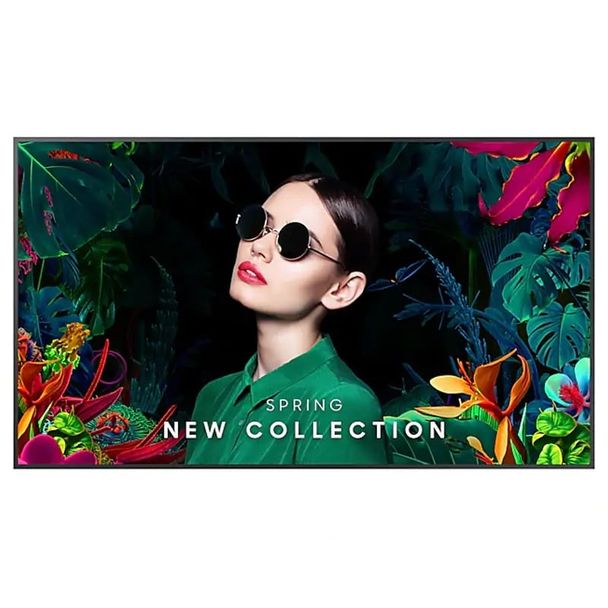

Samsung LH55QMCEBGCXXY QM55C 55" 4K UHD 24/7 500 Nit Commercial Display

DISPLAY

Diagonal Size

55"

Panel Type

VA

Resolution

3,840 x 2,160

Pixel Pitch (HxV)

0.315x0.315mm

Brightness (Typ)

500 nit

Contrast Ratio

4,000:1

Viewing Angle (H/V)

178/178

Response Time

8ms

Color Gamut

72% (NTSC)

Glass Haze

25%

H-Scanning Frequency

30~81kHz

Maximum Pixel Frequency

594MHz

V-Scanning Frequency

48~75Hz

Contrast Ratio (Dynamic)

Mega

Operation Time Support

24/7

CONNECTIVITY

HDMI In

3

DP In

1

Version of HDMI

2

Version of DP

1.2

Version of HDCP

2.2

USB

2

IR In

Yes

Audio In

No

Audio Out

Stereo Mini Jack

RS232 In

Yes

RS232 Out

Yes

RJ45 In

Yes

WiFi

Yes

Bluetooth

Yes

POWER

Power Supply

AC100-240V 50/60Hz

Power Consumption (On Mode)

154 W

Power Consumption (Sleep Mode)

0.5 W

DIMENSION

Set Dimension (WxHxD)

1237.9 x 708.8 x 28.5 mm

Package Dimension (HxWxD)

1403 x 835 x 148 mm

WEIGHT

Net Weight

15.7 kg

Package Weight

19.9 kg

OPERATION CONDITIONS

Temperature

0℃~ 40℃

Humidity

10 ~ 80%, non-condensing

MECHANICAL SPECIFICATION

VESA Mount

200 x 200 mm

Bezel Width

11.5mm (even)

Frame Material

Non-Glossy

SOC

OS Version

Tizen 7.0

Flash Memory Size

16GB

CERTIFICATION AND COMPLIANCE

EMC

Class B

Safety

60950-1, 62368-1
