Shuttle PVG01 VGA Port Expansion Kit for DS81

SKU
BAB-SHU-PVG01
Model
PVG01
Add to Compare
LocationAvailability
Online (Delivery)
In Stock
Notting Hill (Pickup)
In Stock
Preston (Pickup)
Available in 24 Hours
West Melbourne (Pickup)
Available in 24 Hours
$10.00
Shuttle PVG01 VGA Cable for DS81
Shuttle
811686005735
Add to Wish List



PVG01

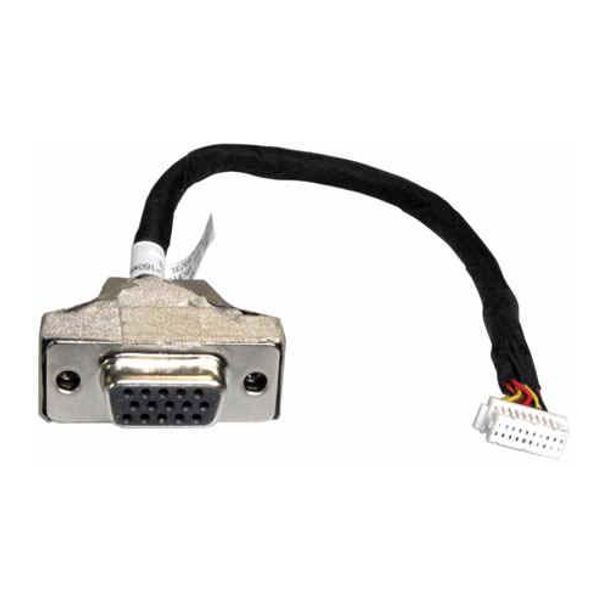

VGA port expansion kit for Shuttle Slim-PCs

The PVG01 adapter equips compatible Shuttle Slim PCs with an analog VGA output. For the 1L slim PCs this also means only one serial interface (COM 1) can be used afterwards.
Note: Slim PCs with H81/H110 chipset support up to two displays at the same time so that only two out of the available video outputs can be used.

  • Scope of delivery:
    Adapter PVG01
    - Installation guide
    - Two screws
  • Specifications:
    Internal adapter cable, Cable length: 160 mm
    Back panel connector: 15-pin Mini D-Sub female socket (DE15)
    Internal connector: Subminiature 2x10-pin, 1 mm pitch size, female
  • Compatibility:
    Compatible to
    - Shuttle XPC slim (1L):  DS81, DS87, DH110, DH170
    - Shuttle XPC slim (3L): XH81, XH81V, XH110, XH110V
