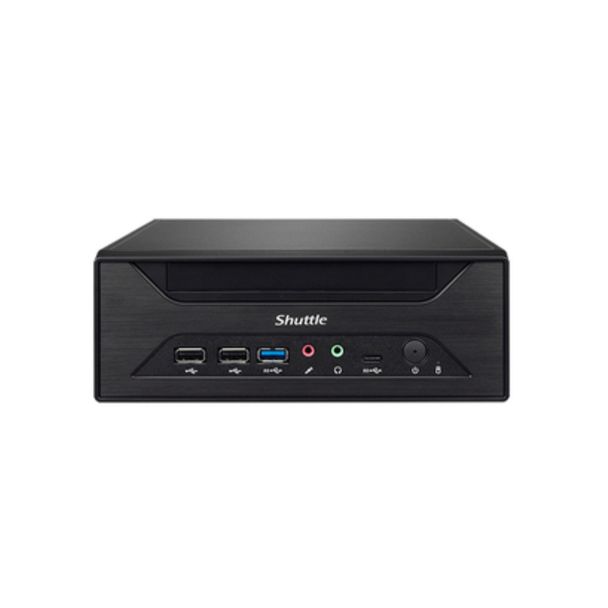

Shuttle XH610G2 5L Mini Workstation PC
Model
XH610G2
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Available from Supplier (2 to 3 Working Days) |
$799.00
Specifications
| FORM FACTOR | Mini-ITX MB 3.5 L chassis |
|---|---|
| PROCESSOR | Support Intel® 12/13th/14th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron® LGA1700 CPU max. TDP 65W * BIOS v2.03 and updated version support Raptor Lake (13th) CPU |
| CHIPSET | Intel H610 Express chipset |
| MEMORY | 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 3200 MHz |
| VIDEO OUTPUT | HDMI + Display + D-Sub (VGA) port triple display |
| AUDIO | Realtek ALC662/ALC897/ALC888S 5.1 channel High Definition Audio |
| ETHERNET | (1)Intel GbE Lan / (1)Intel 2.5 GbE Lan 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function |
| STORAGE INTERFACE | SATA 6.0Gb/s interface |
| ONBOARD CONNECTORS | (3) SATA connectors (1) 1x4 pin USB 2.0 header (2) 4pin fan connectors (1) SATA power connector(5V) (1) SATA power connector(12V) (1) Auto power on header (1) RS232 voltage switch (4) RS232 connectors (1) Battery connector |
| FRONT PANEL | (2) USB 2.0 ports (2) USB 3.2 Gen1 ports (Include Type C x 1) (1) Microphone-In (1) Earphone-Out (1) Power-On button (1) Power LED (1) HDD LED |
| BACK PANEL | (2) RJ45 Gigabit LAN port w/LED (1) Display port (1) HDMI (1) D-Sub (VGA) port (2) USB 2.0 ports (2) USB 3.2 Gen1 ports (1) RS232 (1) RS232/RS422/RS485 (1) Line in port (1) Line out port (1) MIC in port (1) Clear CMOS button (1) DC in (1) Kensington lock (2) Wireless Antenna fixture |
| DRIVE BAYS | (1) 2.5" HDD / SSD bay (1) Slim ODD bay. User can install either 1 Slim ODD or (1) 2.5" HDD/SSD |
| DIMENSIONS | XH610V: 240(L) x 200(W) x 72(H) mm XH610 : 238(L) x 200(W) x 72(H) mm |
| POWER | 120W Power Adapter Input:100- 240V AC 19V 6.32A |
| ACCESSORIES | XPC Multilanguage Quick User Guide XPC DVD Driver 1* Power cord 1* SATA cable (pre-install for HDD) 1* SATA cable (pre-install for ODD) 1* 4 pin to SATA power cable Screws |
| EXPANSION SLOT | (1) M.2 2280 Type M key socket (1) M.2 2230 Type E Key socket |
| OS SUPPORT | Windows 10/11 64 bit O.S Linux |
| REMARK | 1. PHD4 3.5" HDD rack accessory can support XH310/XH310V/XH310R/XH310RV/XH610/XH610V |
| OPERATING TEMPERATURE | 0℃~50℃ |
| GTIN | 887993006796 |
|---|
