Siklu EH-ALIGN-2ft-OptScope Alignment scope
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 3 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 3 Working Days) |
Siklu EH-ALIGN-2ft-OptScope Alignment scope for 2ft ANT. (case + scope and extender mount); 9x40 scope
Siklu EH-ALIGN-2ft is a tool designed to simplify the alignment of EtherHaul links with 2ft antenna.
The tool mounts on the back of the EtherHaul radio attached to a 2ft antenna.
The user can then look for the remote site with a choice of magnification factors to zoom into the remote antenna and pre-align the local side of the link.
Siklu EH-ALIGN-2ft is a tool designed to simplify the alignment of EtherHaul links with 2ft antenna. The tool mounts on the back of the EtherHaul radio attached to a 2ft antenna. the user can then look for the remote site with a choice of magnification factors to zoom into the remote antenna and pre-align the local side of the link. The user should then proceed with fine alignment, as explained in the Quick Start Guide packed with the EtherHaul radio, or follow the detailed procedure in the Operation and User manual of the radio (available on Siklu's Partners portal, portal.siklu.com, in the Tech Centre / Manuals area).

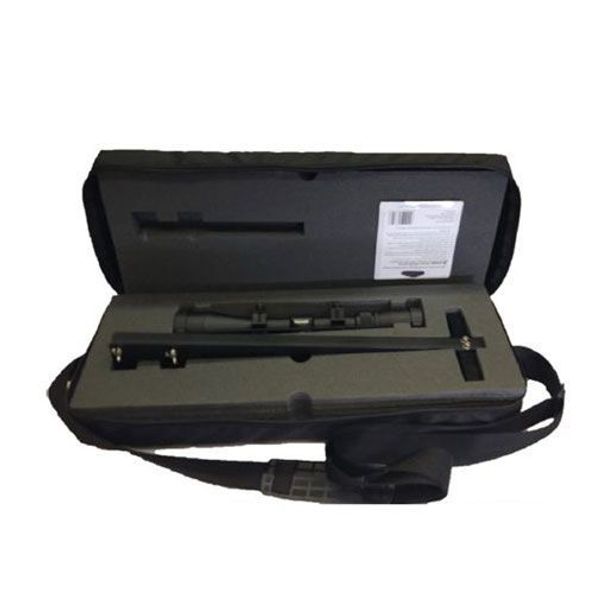

The alignment tool is delivered in a portable case, and composed of 3 parts: the optical scope, the mounting extender and the ring adapters to assemble the scope on the extender.
Dimensions:
• Case Size (both): 20 x 7.8 x 5.1" (51 x 20 x 13cm)
• Weight (with scope): 4.7lbs. (2.16kg)
Product Includes:
(1) Portable Case
(1) Optical Scopes
(1) Ring Adapters
(1) Mount Extender
